Description

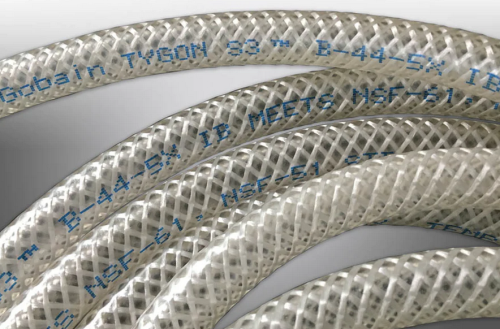

Saint Gobain® S3™ B-44-5X 1B Pressure Tubing, 3/4 in. I.D. x 1 in. O.D. x 1/8 in. Wall Thickness, 1 ft/EA, 10 ft/PK, 50 ft/CS, AMH00053
Features:
- Designed specifically for food and beverage applications involving elevated pressure, including ice cream, shake, and slushie dispensing machines
- Clear, lightweight, flexible, smooth, with non-porous bore to inhibit particle entrapment
- Outstanding resistance to harsh alkaline cleaners and is unaffected by commonly used sanitizers
- Added reinforcement withstands up to four times pressure of non-reinforced tubing
Applications:
- Beer
- Citric Acid
- Dairy
- Distilled Water
- Glycerin
- Milk
- Non-Potable Water
- Orange Juice
- Potable Water
- Salt Water
- Soft Drinks
- Vinegar
Specifications:
| Reinforcement | Yarn Reinforced |
| Color | Clear |
| Stripe Color | No Stripe |
| Clarity | Clear |
| Hardness | Shore A 64 |
| Flexibility | Flexible |
| Bend Radius | 3-1/4 in |
| Maximum Operating Pressure | 145 psi @ 73 °F |
| Maximum Operating Temperature | 165 °F |
| Maximum Vacuum Pressure | 20 in Hg |
| Peristaltic Pump Compatible | No |
| Fitting Compatibility | Barbed |
| Petroleum Product Compatibility | Mineral Oil |
| Resistance Properties | Chemical Resistant; Tear Resistant |
| Application | Beverages; Food; Water |
| Autoclavable | No |
| Does Not Contain | Animal Derived Components; BPA; Genetically Modified Organisms; Latex; Melamine; Nitrosamines; Persistant Organic Pollutants; Phthalates above limits in REACH, RoHS, CA Prop 65; Substances on REACH or RoHS above limit |
| Tensile Strength | 2,100 psi |
| Brand | TYGON |
| Country of Origin | USA (subject to change) |
Specifications
| Compliant/Standard | 3-A; EU Food Contact Regulation (EU) No 10/2011; FDA 21 CFR 170-199; NSF 51; NSF 61 |
|---|---|
| Dimensions | 3/4 in. inside diameter x 1 in. outside diameter x 1/8 in. wall thickness |
| Manufacturer | Saint Gobain Performance |
| Model No | AMH00053 |
