Description

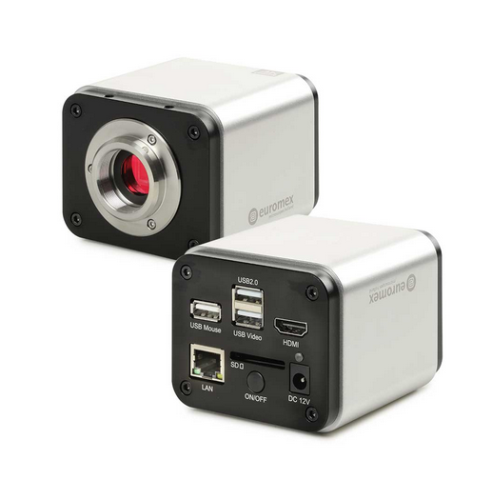

Globe Scientific® Ultra HD/4K High Definition Camera With 1/1.8 Inch Sony 4K Sensor, Standard Micro-SD Card, HDMI, USB-2, Can Be Used In Stand Alone or with Computer and Supplied With Image Focus Alpha Software, 0.5X Objective, HDMI Cable and USB Mouse, EVC-3042
Features:
- High definition 4K UHD 2160 p CMOS color camera with HDMI and USB-2 interface
- 4K Sony Ultra HD camera offers new solution to modern microscopy for industry and laboratories where more spatial detail and contrast is needed for biological, metallurgical or stereo microsopy
- Latest horizontal display resolution of 3,840 pixels (2,160 p) and new 4K screens
- Camera provides excellent color rendering at high frame rates, with up to 60 frames per second
- Wi-Fi dongle is provided to connect camera to computer (ImageFocus Alpha software)
- 3840 x 2160 pixels, 2.0 x 2.0 μm pixel size, 30 fps, H264 codec
- Real time images directly on TV, monitor or beamer
- 4K HDMI 2.0 standard
- Interface: HDMI, USB-2, Ethernet, Wi-Fi
- Works with ImageFocus Alpha software
- ADC 16 bits, color depth 36 bits
- Stand alone or used via PC
- C-mount interface
- 2061 p/1080 p automatic switching
- Sensor: 1/1.8 in. Sony CMOS
- Color rendering: 36 bits
- Signal/noise: 40.5 db with standard noise reduction
- Sensitivity: 505 mV Lux/sec
- Scan mode: Progressive scan, rolling shutter
- Exposure: Automatic/ manual
- White balance: Automatic/ manual/ ROI
Included:
- 0.5x objective with C-mount
- 30 mm and 30.5 mm adapters for stereo microscopes
- 12 V/1 A power adapter
- 32GB SD card
- Micro USB Synchronous cable 1.5M
- HDMI cable
- USB mouse
- WiFi dongle
- 76 x 24 mm calibration slide (1 mm/100)
- Carton box
PC Requirement:
- Compatible with Intel Core 2, 2.8GHZ or higher, 2GB, USB-2
Specifications
| Power | 100-240VAC to 12VDC/1A |
|---|---|
| Operating Environment | Operating: -10 to 50 degrees Celsius, Storage: -20 to 60 degrees C, RH: 30 to 80% |
| Connectivity | HDMI, USB-2, Ethernet, Wi-Fi |
| Manufacturer | Globe Scientific |
| Model No | EVC-3042 |
