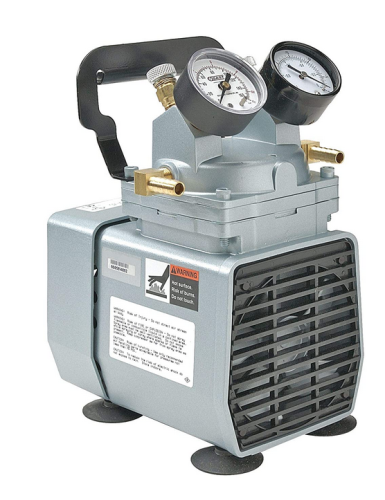

Vacuum Pressure Pump, 115V, Gast, 60 Hz
Roll over image to zoom in Click on image to zoom
Vacuum Pressure Pump, 115V, Gast, 60 Hz

Vacuum Pressure Pump, 115V, Gast, 60 Hz

Item: 21-4475-01-EA
Request a Quote

Description

Oil-less diaphragm pump. The motor is a single phase 1/8hp shaded pole, ball bearing type, with internal thermal protector.  The oil-less diaphragm vacuum pumps offer a small, quiet source of vacuum or pressure.  Features:
  • Oilless
  • Rugged Construction
  • Quiet
  • Cooler Air Output
  • Easy Maintenance
  • Compact, lightweight
  • Corrosion Resistant
  • Low Power Consumption
Specifications:
Item Compressor/Vacuum Pump
Compressor Type Diaphragm
Horsepower 1/8
Power 115V/60Hz/4.2Amps/0.9kW
Inlet Size 3/8" Hose Barb
Outlet Size 3/8" Hose Barb
Max Vacuum 25.5"-Hg (150 mbar)
Max. Pressure 60 psi (4.2 bar)
Free Air @ 0 PSI   1.90 cfm (3.23cubic m/h)
Free Air CFM @ 20 VAC    0.30
Dimensions 7-5/8"L x 5-1/8"W x 8"H
Weight 20Lbs (9.2 kg)
Supplied with:
  • Internal filter and muffler
  • Pressure and vacuum gauges
  • Pressure and vacuum regulators
  • Rubber feet
  • Carrying handle
  • Hose nipples
Applications:
  • Agitators
  • Instrumentation
  • Graphic Arts
  • Pond/Aquarium Aeration
  • Laboratories
  • Copiers
  • Mild Chemical
  • Photo Processing

Specifications

Manufacturer Gast
Model No DOA-P704-AA
