Description

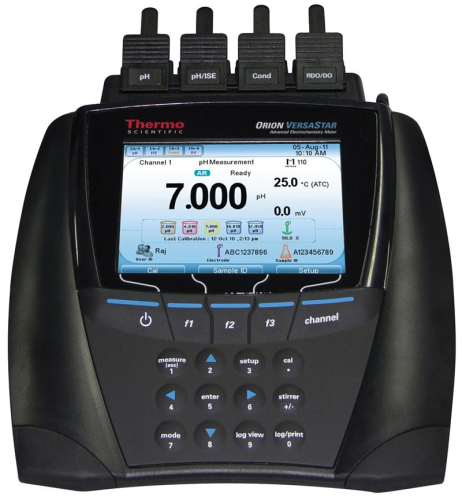

Orion™ Versa Star™ Benchtop pH/mV/RmV/ORP/Temperature Meter Kit with pH/Temperature Module / ROSS® Ultra® Glass-body Triode pH/ATC electrode / Stirrer probe / Solutions / Stand
Get high accuracy, premium performance and ultimate flexibility with the Thermo Scientific™ Orion™ Versa Star Benchtop Meter with pH/ISE Module. Meet your most challenging applications for pH, ion concentration, mV, ORP and temperature. Easily view measurements on the stunning color display and customize the four meter channels with interchangeable modules. Perform up to six point pH and ISE calibrations, log up to 2000 data point sets with time/date stamp and transfer calibration and data logs via USB or RS232 to a printer or computer.
Includes:
- Versa Star™ Meter
- VSTAR-PH pH/Temperature Module
- ROSS® Ultra® Glass-body Triode pH/ATC electrode (8302BNUMD)
- Orion™ Star™ Stirrer Probe (096019)
- 810199 ROSS® solutions Kit (475 mL each of pH 4, 7, and 10 Buffers and Storage solution, 60 mL Cleaning Solution, and 12 mm pH electrode Storage Bottle)
- Electrode Stand
- Universal Power Adapter
- Literature CD
- Printed Quick Start Guide
- Computer Interface Cable
- Meter Test Certificate
Specifications:
| pH Range | -2.000 to 20.000 |
| mV Range | ±2000.0 mV |
| Relative mV Range | ±2000.0 mV |
| ORP Range | ±2000.0 mV |
| Temperature Range | -5.0°C to 105.0°C / 22.0°F to 221.0°F |
| pH Resolution | 0.1, 0.01, 0.001 pH |
| mV Resolution | 0.1 mV |
| Temperature Resolution | 0.1°C / 0.1°F |
| pH Accuracy | ±0.002 pH |
| mV Accuracy | ±0.2 mV or ±0.05% of reading, whichever is greater |
| Temperature Accuracy | ±0.1°C |
| Calibration | pH with calibration editing option, relative mV (RmV), ORP and temperature |
| pH Calibration Points | 1 to 6 |
| RmV/ORP Calibration Points | 1 point relative mV (RMV) mode / 1 point ORP mode |
| Temperature Probe Calibration Points | 1 point temperature offset calibration |
| Isopotential Point | 7.000 pH (adjustable) |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Channels | 4 — customizable with modules |
| Display Type | Color graphic LCD with user-customizable options |
| Backlight Option | Yes |
| Keypad | Numeric with menu-specific function keys and dual purpose scroll/shortcut keys |
| Measurement modes | pH / mV / RmV / ORP with Temperature |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off orAutomatic Smart averaging setting |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 2000 with date and time stamp |
| Log Function Type | Automatic data logging with Auto-Read, Timed and Single Shot measure modes;manual data logging with Continuous measure mode |
| Memory | Non-volatile memory preserves data log, calibration log, and meter settings |
| Alarm Output | Set point alarm, high/low limit alarm, calibration due alarm |
| Methods | 10 per channel with password protection |
| Languages | English, Spanish, French, Italian, German, Chinese, Portuguese and Korean |
| Inputs | BNC (pH or ORP electrode), pin-tip (reference elctrode), 8 pin MiniDIN (ATC temperature probe), two stirrer inputs (stirrer probe) |
| Outputs | USB (2), RS232 |
| Probe Type | pH electrode, ORP electrode, reference half-cell electrode, ATC temperatureprobe, stirrer probe (includes 8302BNUMD ROSS® Ultra® Glass-bodied Triode pH/ATC electrode, and 096019 Orion™ Star® Stirrer Probe) |
| Power Supply | Universal AC adapter (included) |
| AC Adapter | Universal 50-60 Hz, 100-240VAC power adapter (Cat. No. STARA-PWR) |
| IP Rating | IP-54 |
| Certifications/Compliance | CE, TUV 3-1, FCC Class A |
| Operating Temperature | 5° to 45°C / 41° to 113°F |
| Relative Humidity Range | 5 to 85%, non-condensing |
| Dimensions (L x W x H) | 28 cm x 24 cm x 10 cm / 11 in. x 9.5 in. x 3.9 in.(Modules add ≤ 2 cm / 0.8 in. L & H) |
| Weight | 1.2 kg / 2.5 lb. (Modules add 0.2 kg / 0.5 lb. each) |
| Warranty | 3 year meter and module warranty |
