Description

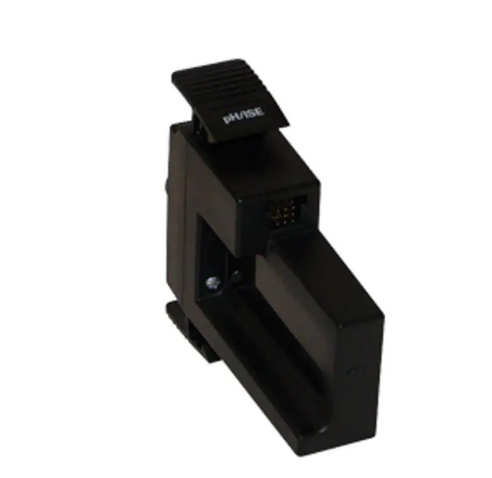

Thermo Scientific™ Orion™ Versa Star™ pH / mV / ISE / Temperature Measurement Module, VSTAR-ISE
Features:
- Add pH, ion concentration, mV, ORP and temperature measurement capabilities to your Thermo Scientific™ Orion™ Versa Star™ meter with this module
- Each Orion™ Versa Star™ meter has four channels that can be customized with interchangeable measurement modules
- pH/ISE module offers up to six point pH and ISE calibrations and advanced ISE features including incremental techniques (single and double known addition and subtraction, analate addition and subtraction), low range stability and electrode ID with calibration verification
Specifications:
| Advanced ISE Functions | Timed endpoint, linear point to point, non-linear selectable auto-blank, low concentration range stability, incremental techniques including single known addition and subtraction, double known addition and subtraction, single analyte addition and subtraction |
| Alarm Output | Set point alarm, high/low limit alarm, calibration due alarm |
| Calibration | 1 point (mV mode) |
| Calibration Points (ISE) | 1 to 6 |
| Calibration Points (pH) | 1 to 6 |
| Calibration Points | 1 point relative mV (RmV) mode, 1 point ORP mode |
| Isopotential Point | 7.000 pH (adjustable), 1.000 ISE (adjustable) |
| IP Rating | IP-54 |
| Measurement Modes | pH, mV, relative mV (RmV), ORP or ion concentration (ISE) with temperature |
| Methods | 10 per channel with password protection |
| Probe Type | pH electrode, ORP electrode, ion selective electrode (ISE), reference half-cell electrode, ATC temperature probe (purchase separately) |
| Resolution (ISE) | Up to 4 significant digits |
| Resolution (mV) | 0.1 mV |
| Resolution (pH) | 0.1, 0.01, 0.001 |
| Resolution (Temperature) | 0.1 °C |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Selection | Manual or automatic with ATC temperature probe |
Specifications
| Range | pH: -2.000 to 20.000 |
|---|---|
| Range | ISE: 0 to 19999 in ppm, M, mg/L, %, ppb or unitless |
| Range | mV, Relative mV, ORP: +/-2000.0 mV |
| Range | Temperature: -5 degrees C to 105 degrees C (23 degrees F to 221 degrees F) |
| Accuracy | pH: +/-0.002 pH, mV and ISE: +/-0.2 mV or +/-0.05 of reading, whichever is greater, Temperature: +/-0.1 degrees C |
| Operating Environment | 5 degrees C to 45 degrees C (41 degrees F to 113 degrees F), Relative Humidity: 5 to 85 %, non-condensing |
| Connectivity | Inputs: BNC (pH or ISE), 8-pin Mini-DIN (temperature), reference pin-tip |
| Dimensions | 12 x 3 x 9.5 cm (4.7 x 1.2 x 3.8 in.) |
| Weight | 0.2 kg (0.5 lb) |
| Manufacturer | Thermo Scientific Orion |
| Model No | VSTAR-ISE |
| Warranty | 3 year module warranty |
