Description

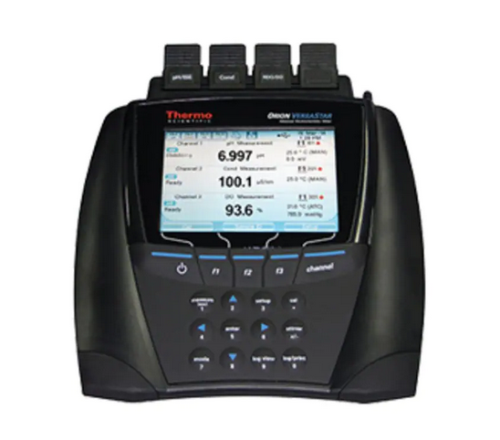

Thermo Scientific™ Orion™ Versa Star Pro™ pH/ISE/Conductivity/Dissolved Oxygen Multiparameter Benchtop Meter, VSTAR94
Features:
- Provides high accuracy, premium performance and ultimate flexibility for most challenging applications for pH, ion concentration, conductivity, dissolved oxygen and temperature
- Customize four meter channels with interchangeable modules
- Measurements for all four channels can be viewed at once on color display along with stability indicator that signals when readings are stable
- Selectable read modes include Auto-Read to hold stable reading, Continuous to show changing readings, Timed to log data at specific intervals and Single-Shot to hold reading after specific wait time is reached
- Audible alarms automatically sound when set offset value, high/low limit value and calibration time interval are reached
- Uniformly mix solutions using up to two meter-controlled stirrer probes that are easy to position and can be quickly rinsed between samples
- Data log collects and date/time stamps up to 2000 measurement sets with optional electrode ID, sample ID and account ID
- Calibration log stores 30 most recent calibrations per parameter with viewable graph for multipoint pH and ISE calibrations
- Ensure measurement integrity by viewing active calibration log while taking readings
- Non-volatile meter memory preserves data and settings, even in event of power loss
- Meter facilitates data transfers to computer via USB or RS232 connections
- Pro™ series has system access feature designed to help ensure data integrity by preventing undesired access to various meter functions including date/time setting, data log and calibration log and can be turned off according to lab needs
- When enabled, System Access feature allows assignment of a system administrator and up to 10 user accounts with customizable access to instrument settings, measurement settings, calibrations and logs - use password protection to secure selected meter functions, while leaving other functions accessible for all users customizable to specific security and data reporting needs
Orion™ Versa Star™ pH/ISE Measurement Module:
- Measure pH, ion concentration, mV, relative mV or ORP with temperature
- Perform up to 6 point pH calibration using automatic buffer recognition of NIST, DIN or user-defined buffer groups
- Perform up to a 6 point ISE calibration with selectable units of ppm, M, mg/L, %, ppb or none
Orion™ Versa Star™ Conductivity Measurement Module:
- Measure conductivity, TDS, salinity or resistivity with temperature
- Perform up to 6 point conductivity calibration
Use linear, non-linear, EP (USP) or off conductivity temperature compensation with 5 °C, 10 °C, 15 °C, 20 °C or 25 °C reference temperatures
Orion™ Versa Star™ RDO/DO Measurement Module:
- Measure dissolved oxygen in percent saturation or mg/L with temperature using Orion RDO optical DO probes or Orion polarographic DO probes
- Calibrate DO using water-saturated air, air-saturated water, custom value (Winkler titration) and zero point options
- Automatically compensate DO readings using ATC temperature, manual salinity input and built-in barometer for barometric pressure
Includes:
- Versa Star Pro™ meter
- 91-2639-79 (Orion™ VSTAR-ISE) pH/ISE module
- 91-2639-113 (Orion™ VSTAR-CND) conductivity module
- 91-2639-114 (Orion™ VSTAR-RD) RDO/DO module
- 91-2661-34 (Orion™ 8157BNUMD) ROSS™ Ultra Triode epoxy-body pH/ATC electrode
- 91-2638-91 (Orion™ 013005MD) DuraProbe™ 4-cell (K=0.475) conductivity sensor
- 91-2661-52 (Orion™ 087010MD) RDO optical dissolved oxygen sensor
- ORN-096019 (Orion™ 096019) Orion™ Star™ stirrer probe
- (Orion™ 810199) ROSS™ pH buffer and solution kit
- pH 4.01 buffer ORN-910104 (Orion™ 910104), 475 mL
- pH 7.00 buffer ORN-910107 (Orion™ 910107), 475 mL
- pH 10.01 buffer ORN-910110 (Orion™ 910110), 475 mL
- ROSS™ pH electrode storage solution 91-2668-06 (Orion™ 810001), 475 mL
- General pH electrode cleaning solution 91-2673-08 (Orion™ 900023), 30 mL
- One 12 mm diameter pH electrode storage bottle 21-2403-02 (Orion™910003)
- 17-7109-02 (Orion™ 011007) 1413 μS conductivity standard
- 91-2639-61 (Orion™ STARA-BEA) Electrode stand
- 91-2639-100 (Orion™ VSTARA-PWR) universal power adapter literature CD
- Printed quick start guide
- 91-2639-13 (Orion™ 1010053) Star™ Series RS232 computer interface cable
- Meter test certificate
Specifications
| Range | pH: -2.000 to 20.000, mV: +/-2000.0 mV, Conductivity: 0.001 uS/cm to 3000 mS/cm |
|---|---|
| Range | ISE: 0.0001 to 19990 with selectable units of ppm, Molar, mg/L, %, ppb or none, ORP: +/-2000.0 mV |
| Range | Resistivity: 2 ohm to 100.0 meg-ohm, Salinity: 0.06 to 80.00 psu, 0.05 to 42.00 ppt, TDS: 0.001 to 200.0 ppm |
| Range | Polargraphic DO: 0.00 to 90.00 mg/L, RDO: 0.00 to 50.00 mg/L |
| Power | Universal AC adapter (included) - DC input: 9 VDC, 1 A |
| Accuracy | pH: +/-0.002, mV/ISE: +/-0.2 mV or ±0.05% of reading, |
| Compliant/Standard | CE, TUV 3-1, FCC Class A |
| Operating Environment | Ambient-5 degrees C to 45 degrees C (41 degrees F to 113 degrees F), Relative Humidity: 5 to 85%, non-condensing |
| Connectivity | USB (2), RS232 |
| Dimensions | 28 x 24 x 10 cm (11 x 9.5 x 3.9 in.), modules add ? 2 cm (0.8 in.) L & H |
| Weight | 1.2 kg, modules add 0.2 kg each (2.5 lb., modules add 0.5 lb. each) |
| Manufacturer | Thermo Scientific Orion |
| Model No | VSTAR94 |
| Warranty | 3-year replacement warranty |
