Description

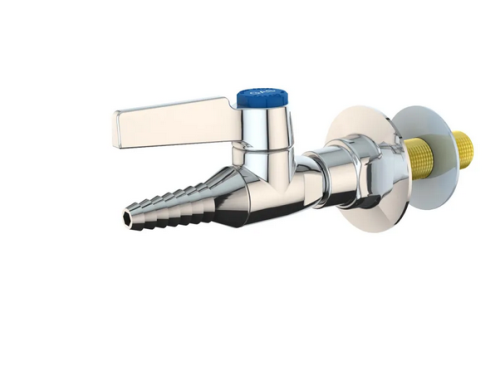

Water Saver® Water Saver Single Laboratory Ball Valve, Panel Mounted
Features:
- Installed on lab sinks in schools, hospitals, research facilities, and similar settings
- Mounting: For installation on vertical or horizontal surfaces (such as pipe chases and service carriers) where there is access behind surface during installation. Threaded mounting shank is inserted through hole in surface and secured with locknut and washer
- Valve Body: Forged brass
- Valve Unit: Quarter-turn open / close with chrome plated brass ball and molded PTFE seals
- Handles: Forged brass lever handle with color-coded index disc
- Inlet: Furnished with 3/8″ IPS mounting shank (assembled), locknut and washer. 3/8″ NPT male inlet
- Outlet: Integral (nonremovable) seven serration hose end.
- Quality Assurance: Fixture is fully assembled and factory tested prior to shipment
Specifications
| Material | Chrome plated brass |
|---|---|
| Manufacturer | Water Saver |
| Model No | L4100-158WSA |
