Description

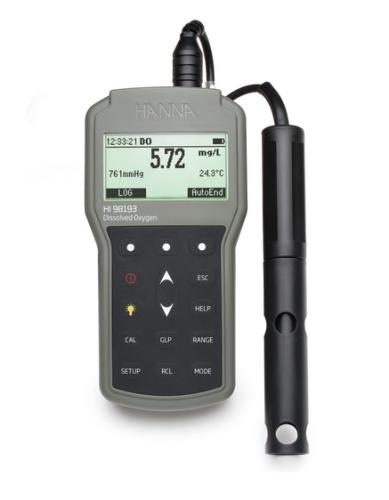

Hanna Instruments® Waterproof Portable Dissolved Oxygen and BOD Meter, HI98193
Features:
- Rugged, portable dissolved oxygen (DO) meter designed for demanding applications whether in field or lab
- Professional, waterproof meter complies with IP67 standards and measures DO, barometric pressure, BOD and temperature
- Preformed PTFE Membrane
- Quick Connect
- Ergonomic, One-Handed Operation
- Polarographic dissolved oxygen probe with field replaceable membrane caps and quick connect waterproof DIN connector without threads
- Extended ranges of up to 50 ppm and 600% saturation
- Built-in barometer for pressure adjusted measurement
- Automatic temperature compensation
- Salinity compensation
- Built-in methods and calculations for the measurement of Biological Oxygen Demand (BOD), Oxygen Uptake Rate (OUR) and Specific Oxygen Uptake Rate (SOUR)
- High contrast, graphic LCD display easy to read in sunlight and backlit for dim light
Supplied with:
- HI764073 (90-6400-84) DO probe
- HI76407A/P (90-6400-82) Preformed PTFE membrane cap (2)
- HI7041S (90-6400-81) electrolyte solution (30 mL)
- HI7040 (91-6403-07) bicomponent zero oxygen solution
- 100 mL plastic beakers (2)
- HI92000 (91-2599-11) PC software
- HI920015 (92-1624-79) micro USB cable
- 1.5V AA batteries (4)
- Instruction manual
- Quick start guide
- Instrument quality certificate
- HI760193 (92-1624-80) rugged carrying case
Specifications:
| Temperature Resolution | 0.1 °C (0.1 °F) |
| Temperature Accuracy (@ 25 °C/77 °F) | ±0.2 °C (±0.4 °F) (excluding probe error |
| Temperature Calibration | One or two point at any in range temperature value |
| DO Resolution | 0.01 mg/L / 0.1 % saturation |
| DO Accuracy (@ 25 °C/77 °F) | ±1.5 % of reading ±1 digit |
| Barometric Pressure Resolution | 1 mm Hg |
| Barometric Accuracy | ±3 mm Hg within ±15 % from the calibration point |
| Temperature Compensation | Automatic from 0.0 to 50.0 °C (32.0 to 122.0 °F) |
| Calibration | • One or two points automatic calibration at 100 % (8.26 mg/L) and 0 % (0 mg/L). • One point manual using a value entered by the user in % saturation or mg/L. |
| Log Feature | Log-on-demand up to 400 samples |
| GLP | Yes |
| Power Consumption | approx. 200 hours of continuous use without backlight (50 hours with backlight) |
| Recommended Probe | HI764073 polarographic DO probe with protective sleeve, internal temperature sensor, DIN connector and 4m (13 ft.) cable (included) |
Specifications
| Range | Temperature: -20.0 to 120.0 degrees C (-4.0 to 248.0 degrees F) -20.0 to 120.0 degrees C (-4.0 to 248.0 degrees F) |
|---|---|
| Range | DO Range: 0.00 to 50.00 mg/L / 0.0 to 600.0 % saturation |
| Range | Barametric Pressure Range: 450 to 850 mm Hg |
| Power | 1.5V AA batteries (4 pcs.) |
| Application | Environmental, water and wastewater, aquaculture, food manufacturing |
| Operating Environment | 0 to 50 degrees C (32 to 122 degrees F) max. Relative Humidity 100% IP67 |
| Connectivity | PC Connectivity with Opto-isolated USB |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4 in.) |
| Weight | 400 g (14.2 oz.) |
| Manufacturer | Hanna Instruments |
| Model No | HI98193 |
| Warranty | 2 years |
