Description

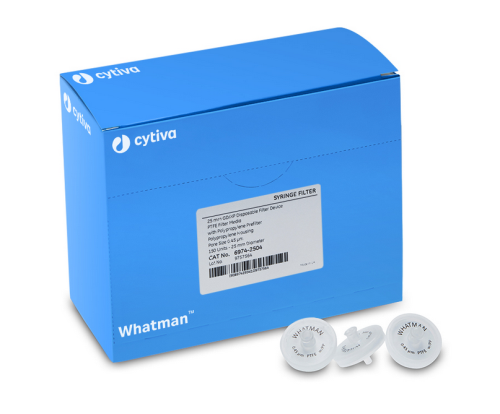

Cytiva Whatman GD/XP Disposable Syringe Filters are highly suitable for use with samples that require inorganic ion analysis as levels of ion extractables are minimized. They are also an alternative choice for users requiring a filter that exhibits extremely low protein binding characteristics.
GD/XP Syringe Filters contain a two-layer prefilter stack comprised of 20 m and 5 m polypropylene filters. The last stage of filtration is a choice of membrane, which is positioned below the prefilter stack.
Product Data| Flow Direction | Flow should enter from the inlet |
| Dimensions | 20.8 x 30mm |
| Prefilter Material | PP 20 m : 5m |
| Operating Pressure Max. | 5.2 bar (75 psi) |
| Filtration Area | 4.6 cm |
| Housing | Pigment free polypropylene (PP) |
| Sterilization | Autoclave at 121C (131C Max) at 1 bar (15 psi) for 20 minutes |
| Outlet Connector | Male luer |
| Inlet Connector | Female luer lock |
| Diameter | 25mm |
Specifications
| Manufacturer | Cytiva |
|---|---|
| Model No | 6971-2504 |
