Description

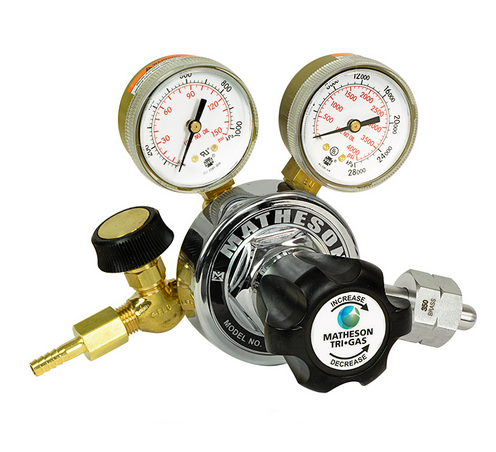

Matheson Tri Gas® 18 Series Single-Stage General Purpose Regulator - Brass, SEQ 18L350
Features:
- General purpose regulator with rugged construction for use with non-corrosive gases
Note:
- Contact one of knowledgeable sales team for advice on Gas compatibility — 1-800-624-8285
Applications:
- Use with gases that are 99.995% or lower purity
- Regulation of air supply to valves and actuators
- Inert gas supply for purging applications
- Calibration of pressure gauges, rotameters, and mass flowmeters
- Applications with high duty cycle/demanding operating conditions
Specifications:
| Delivery Pressure Range | 4 to 100 psi |
| Delivery Pressure Gauge | 0 to 150 psi |
| Cylinder Pressure Gauge | 0 to 4000 psi |
| CGA | 350 |
| Maximum Inlet Pressure | 3000 psig (20,700 kPa) |
| Maximum Flow Rate | 4000 CFH (1890 LPM)(At 2000 psig, N2) |
| Flow Capacity (Cv) | 0.17 (without outlet valve) |
| Operating Temperature | -20°F to 140°F (-29°C to 60°C) |
| Porting (Regulator Body) | 1/4” NPT Female |
| Porting Configuration | 2 High, 2 Low |
Specifications
| Manufacturer | Matheson Tri Gas |
|---|---|
| Model No | 18L350 |
