Description

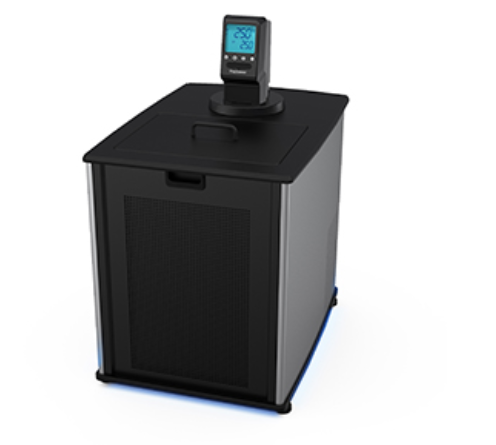

PolyScience® 20 Liter Refrigerated Circulator, -30 degrees C, MX20R-30-A11B
Features:
- Large, universal icon and English display
- On-screen prompts
- Single-point calibration capability
Specifications:
| Controller Type | MX |
| Nominal Cooling Capacity @ +20C (W) | 915 |
| Reservoir Cover | Included |
| DuraTop | Yes |
| LidDock | Yes |
| Cleanable Air Filter | Yes |
| Temperature Stability °F | ±0.13° |
| Temperature Stability °C | ±0.07° |
| Display | 3.25 in. LCD |
| Display Resolution (Set) | 0.1 |
| Display Resolution (Read) | 0.1 |
| Pump Type | Pressure |
| Pump Speed | One |
| Process Connections | 1/2 in. O.D. Barbed Tubes |
| Flammability Class (DIN 12876-1) | I (NFL) |
| Over-Temperature Protection / Failsafe Heater Control | Yes |
| Low Liquid Level Protection | Yes |
| WhisperCool Environmental Control Technology | Yes |
| Cool Command Refrigeration Technology | Yes |
| Reservoir Drain | Yes |
| Refrigerant | R404A |
| Cooling Capacity @ -20°C (W) | 165 |
| Cooling Capacity @ 0°C (W) | 505 |
| Cooling Capacity @ +20°C (W) | 915 |
| Cooling Capacity @ +100°C (W) | 915 |
| Included Hardware | Fitting Kit for External Applications |
Specifications
| Range | Temperature: -22 to 275 degrees F / -30 to 135 degrees C |
|---|---|
| Range | Maximum Pressure: 2.3 psi / 0.16 bar |
| Range | Maximum Flow: 3.60 gpm / 13.5 Lpm |
| Capacity | Reservoir: 5.28 gallons / 20 L |
| Material | Tank: stainless steel |
| Power | 120 V / 60 Hz / 1 phase / 13 amps, Heater: 1100 W |
| Compliant/Standard | RoHS, WEEE, ETL |
| Operating Environment | Maximum Ambient: 95 degrees F / 35 degrees C |
| Other | Inside L x W x D: 9.85 x 12.45 x 5.5 in / 25 x 31.6 x 14 cm |
| Dimensions | Exterior L x W x D: 24 x 16.5 x 28 in / 61 x 41.9 x 71.1 cm |
| Weight | 124.0 lbs / 56.2 kg |
| Manufacturer | PolyScience |
| Model No | MX20R-30-A11B |
| Warranty | 24 months |
