3 in. Vibratory Sieve Shaker, 115 V, Gilson, SS-3

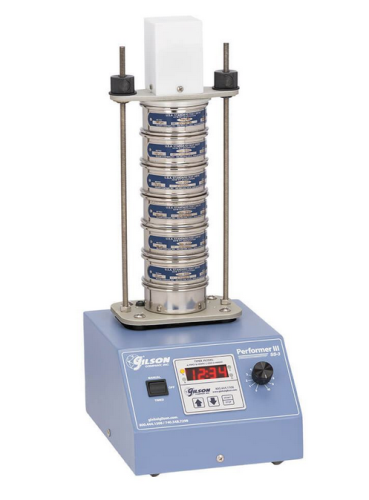

Gilson® 3 in. Vibratory Sieve Shaker, 115 V, SS-3

Features:

• Compact, quiet and electromagnetic vibratory action
• Ideal for efficient dry powder separations of small samples
• Accurately separates from No. 4 to No.635 / 4.75 mm to 20 µm sample sizes with woven wire sieves — extended sizes possible for some materials
• 0 to 100% amplitude control
• Gilson EZ-Clamp system quickly secures sieve stack and allows easy insertion or removal of sieves while keeping top cover secure at fixed height until knob is tightened
• Accepts ASTM metal or Gilson acrylic and non-metalic frame sieves
• SSA-17 3 in Acrylic Sieve Adapter and metal sieve cover are provided with unit
• Optional SSA-15 or GAA-88 Acrylic Spacers available for observing sample action while leveling platform or for setting vibration (purchase separately)
• Small size and portability allow easy set-up in areas near process operations or for remote QC/QA applications
• High frequency of 3,600 vpm electromagnetic vibratory action with 0 to 100% amplitude control allowing optimal settings for fine particle separations
• Selectable, in-line solenoid-actuated tapping action works at up to 60 taps/min during sieving to redistribute sample on sieve and break static blinding, which helps to rapidly clear undersized particles from mesh openings
• Rugged powder-coated steel case
• Variable control for vibration intensity, and manual/timed mode switch
• Digital countdown timer with timer capacity of up to 99 min and 59 secs
• Easy-to-read timer has a 0.5 in. / 12.7 mm LED display, pause function that allows cycle to be suspended and resumed with no loss of test time, and five-second audible alarm sounds after testing is complete
• Operates on 115V, 50/60Hz — for operation on 230V, order optional TR-502 Step-Up/Step-Down Transformer

Note:

• When using Non-Metallic Sieves, tapping action should not be used (shaker top cover is not compatible with these types of sieves)

Applications:

• Dry chemicals
• Minerals
• Pharmaceuticals
• Powdered metals
• Cosmetics
• Abrasives
• Ores
• Foods
• Other fine powders

Specifications:
