Description

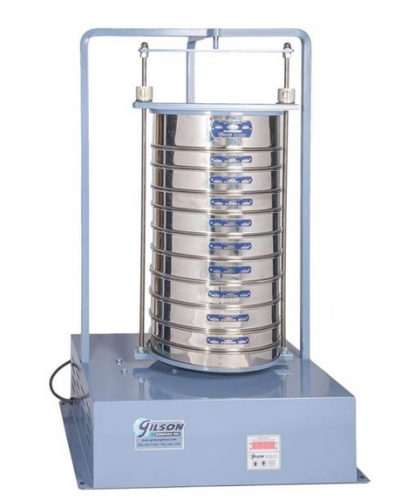

Gilson® 8 in / 12 in Sieve Shaker with Digital Timer, 115 V, 60 Hz, SS-14D
Features:
- Portable, easy to use, and outperform comparably priced sieving equipment
- Widely used in particle size testing of mineral aggregates and for sieve gradations of many other free-flowing granular materials
- Cost-effective 1/4 hp units which are widely accepted by state transportation departments for highway materials testing
- Both models feature back-and-forth lateral motion combined with up/down and tilting actions — combination of actions moves test specimen in orbit on sieve cloth
- Particles are exposed to entire mesh area of test sieve, and size fractions are quickly separated
- Shakers are recommended primarily for No. 4 to No. 200 (4.75 mm to 75 µm) material size range but may be used with larger material sizes when specifications for sieve loading and sample quantities permit
- Both models have exclusive EZ-Clamp system to quickly and securely lock in sieves for testing
- Easy-to-operate clamping system with integral sieve cover slides freely up and down clamp rods with push of button
- Once in position, quick twist secures stack
- When test is complete, raise just enough to remove stack, and clamps stay in place, ready for next test without readjustment
- All mechanical and electrical parts are enclosed in rugged painted steel case with rubber feet
- Freestanding operation is normal, but they may be securely mounted via holes provided in bottom-end flanges
- SS-14D series accommodates 8 in, 12 in, 200 mm, and 300 mm test sieves
- SS-14 shakers can be purchased to operate on either 115 V, 60 Hz or 230 V, 50 Hz power (230V, 50Hz powered model is shipped without an electrical plug)
- SS-14D models feature exclusive digital countdown timer with a large 0.5 in (12.7 mm) LED display
- Timer shows precisely timed operations up to 99 minutes at ±1 second
- Pause function and user-selectable modes offer greater versatility
- Settings are saved between cycles for precise repeatability and easy, one-button operation
Specifications:
| Sieve Frame Diameter | 8 in (203 mm) / 12 in (305 mm) & 300 mm |
| Particle Size Range | No. 4–No. 200 (4.75 mm–75 µm) |
| Sieve Capacity with Pan | Full Height: (10) 8 in/200mm Sieves or (6) 12 in/300 mm Sieves / Half Height: (21) 8 in/200 mm Sieves or (14) 12 in/300 mm Sieves / Intermediate-Height: (10) 12 in Sieves |
| Timing Capacity | Digital Models: Up to 99 minutes |
| Mounting Capability | Yes |
Specifications
| Power | 115 V, 60 Hz |
|---|---|
| Dimensions | W x D x H: 26 x 20 x 40 in / 660 x 508 x 1,016 mm |
| Weight | 100.0 lb / 45.36 kg (shipping) |
| Manufacturer | Gilson Company |
| Model No | SS-14D |
