Description

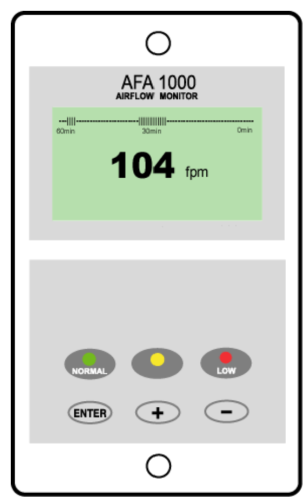

Prime Industries Inc® TEL® Airflow Monitor, Digital Alarm Unit for Fume Hoods, AFA1000/1
Features:
- System includes in-line airflow sensor, AFA1000 Alarm unit and AC power supply
- Display operates through software allowing generation of figures, wording and Icons
- 3 programmable airflow alarms
- Shows fume hood face velocity in m/sec or fpm when enabled or alternatively, with no velocity reading but showing LOW AIR / NORMAL as continuous display and these are configured via keypad
- Event timeline can be displayed that shows events that have occurred during past hour or bar graph representing face velocity
- Alarm can be audible or mute (when muted HORN Icon with line through it will be on display)
- Possible configurations can include Sash high, External alarm, Low air, High air, Set-back and Displayed
Specifications
| Range | Safe Airflow: Airflow reading above warning level, >0.45 m/sec |
|---|---|
| Range | Airflow reads between warning level and air fail level,.> 0.4 m/sec and < 0.45 m/sec) |
| Range | Low /High airflow: <0.4 m/sec or > 1.50 m/sec |
| Dimensions | Display: 2.2 x 1.18 in. . |
| Manufacturer | Prime Industries Inc - Temperature Electronics Ltd (TEL) |
| Model No | AFA1000/1 |
| Warranty | 12 months |
