Description

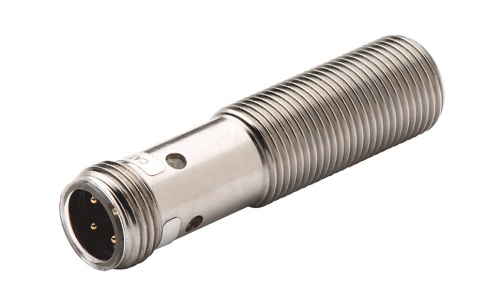

Allen-Bradley® Inductive Proximity Sensor, A-B-872C-DH8NP18-D4
Specifications:
| Applications | DC Standard |
| Barrel Type | Short |
| Connection Type | Plug-in |
| Maximum Load Current | 200 mA |
| Output | Normally open |
| Size | 18 mm barrel diameter |
| Standards Compliance | C-TICK,CCC,CE,CUL,KC,RCM,UL |
| Type | Cylinder, screw-thread, metallic target, barrel |
| Barrel Diameter | 18 mm |
| Blade Dimensions | 18 mm diameter x 59.7 mm length |
| Material | Metal |
| Sensing Range | 8 mm |
| Split Crucible | S |
| TC connection | 4 pin DC Micro QD |
| Voltage | 30 V |
