Description

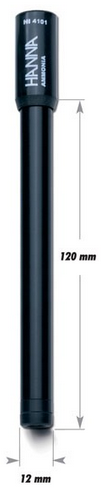

The Hanna HI 4101 Gas-sensing, combination Ammonia ISE detects dissolved Ammonia gases in solution by a gas permeable membrane and is recommended for water and soil analysis. No reference electrode is required when using this combination electrode.
Possible applications:
- Determination of ammonium and ammonia in wine, beer, water, wastewater, and soil
Specifications:
| Parameter | Ammonia |
| Type | Gas-Sensing; Combination |
| Measurement Range | 1M to 1X 10-6M17000 to 0.02 mg/L (ppm)14000 to 0.016 mg/L as N |
| Optimum pH Range | >11 |
| Temperature Range | 0 to 40°C |
| Approximate Slope | -56 |
| Body O.D. | 12 mm |
| Insertion Length | 120 mm |
| Body Material | Delrin |
| Cable | 1m coaxial |
| Connector | BNC |
