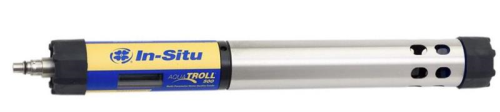

Aqua TROLL 500 MulTiparameter Sonde, No Pressure, In-Situ Inc, 0050710

In-Situ™ Aqua TROLL® 500 Multiparameter Sonde, No Pressure, 0050710



Features:



• An economical solution that can be used as both a handheld instrument for spot checking, low-flow sampling, or deployed as a long-term monitoring device which can be connected to control systems or telelemetry
• Bluetooth enabled to communicate directly with a PC or Android Smart device
• Fully customizeable sonde with up to four optional Smart sensors that can measure multiple parameters with a single instrument including:

pH/ORP	RDO (optical dissolved oxygen)	Actual and specific conductivity
Salinity	TDS (total dissolved solids)	Resistivity
Density	Turbidity	Temperature and pressure
	ISE (ion selective electrodes):
Ammonium	Chloride	Nitrate
	Plus — Fluorometers:
Chlorophyll	Rhodamine WT	Blue Green Algae

• If more than four parameters need to be monitored at once, multiple sondes can be connected in series using optional RuggedCable® splitters (maximum of 8 splitters in one series) and all can communicate through the same cabling system
• Depth and barometric pressure (in vented models only) are also integrated into the sonde
• Minimal maintenance and calibration saves time and money—unique optional wiper protects sensors from fouling
• Sensors are serialized, self-diagnostic, retain calibration, are flat-faced and cleanable, have extended ranges, and have dependable, interlocking design that attach with set screws
• Corrosion-resistant probe withstands harsh environments
• LCD readout on probe shows probe health and battery life
• Real-time data can be downloaded wirelessly using the VuSitu® Mobile App with no special training or post-processing required
• Easy setup—connect to existing telemetry, PLC/SCADA or dataloggers
• Use HydroVu® software platform for long-term monitoring—provides online data access 24/7
• Tech support and application guidance available 24/7
• Guaranteed 7-business-day maintenance turnaround—short down time for important data collection
• Warranty: 2 yrs for Sonde, RDO and sensor cap, temperature/conductivity, temperature only, turbidity (excluding pH/ORP) sensors; 1 yr for pH/ORP, Chloride ISE sensors and accessories; 90 days for Nitrate & Ammonium ISE sensors



Please Note:



• Many options and configurations of the Aqua TROLL® 500 are available.  Call to arrange a consultation with our staff today to find the best fit for your application!



Applications:



• Surface water spot sampling and profiling
• Remote monitoring via telemetry, PLC/SCADA
• Long-term monitoring for drinking water, wastewater, or storm water
• Aquaculture
• Ideal for wired or wireless water quality networks



Required Accessories:



• Wireless TROLL com — for calibration and to power instrument when used as handheld
• Sensors — choose 4 different sensors
• Rugged twist-lock cable (choice of vented or unvented available) and splitters if more than one sonde is to be deployed in series
• Android device with VuSitu® mobile app for calibration procedure or Win-Situ® 5 software for PC
• Calibration solutions
• External power source — TROLL com or battery- or solar-powered Tube 300 or Cube 300 device when connecting to telemetry, PLC/SCADA or datalogger devices



Supplied with:



• Instructions
• Software CD
• Maintenance Kit
• Instrument tools





Specifications:



Operating Temperature(Non-Freezing)	-5 to 50 °C (23 to 122 °F)[for ISE: Ammonium & Nitrate—0 to 40°C  Chloride—0 to 50 °C
Storage Temperature	Components without fluid: - 40 to 65 °C (Non-freezing water) pH/ORP Sensors: -5 to 65 °C; Ammonium & Nitrate: 0 to 40°C; Chloride: 0 to 50 °C
Dimensions	46 cm (18.145"") long (including connector); 59 cm (23.25"") long (including bail); 4.7 cm (1.860"") diameter
Weight	0.978 kg (2.15 lbs)[includes, sonde, sensors, restrictor, and bumpers)
Wetted Materials (Sonde and Sensors)	PC, PC alloy, Delrin®, Santoprene™, Inconel, Viton™, Titanium, Platinum, Ceramic, Nylon, PVC, Graphite
Number of Sensors	Up to four sensors at a time
Sensor Hex Screw Driver	1.3 mm (0.050"")
Environmental Rating	IP68 with all sensors and cables attachedIP67 without sensors and cables attached
Maximum Pressure Rating	Up to 150 PSI; Ammonium & Nitrate Sensors: up to 30 PSI
Output Options	RS-485/MODBUS, SDI 12, Bluetooth
External Power Voltage	8.36 VDC; required for normal operation
External Power Current (Dependent on Display and Wiping)	Sleep: < 0.2 mA typical; Measurement: 40 mA typical, 75 mA maximum
Internal Memory and Data Logging	Use external datalogger or telemetry
Reading Rates	1 reading every 2 seconds
Communication Device	Wireless TROLL Com
Cable Options	Vented or non-vented polyurethane or vented Tefzel®
LCD Display	Integrated display shows status of sonde, sensor ports, power voltage and connectivity, enable/disable Bluetooth
Software	Android: VuSitu® through Google PlayWindows: Win-Situ® 5 Data Service & HydroVu®
Interface	Android 4.4, requires BlueTooth 2.0
Certifications	CE, FCC, WEEE, RoHS Compliant
Warranty †	2-year — sonde, RDO and sensor cap, temperature/conductivity, temperature only, turbidity, fluorometer sensors 1-year — pH/ORP, accessories90 days — ISE sensors, Other: see www.in-situ.com/warranty for complete warranty policy

     † Extended warranty available from 1 to 3 years (5 years total) on Sonde only
