Description

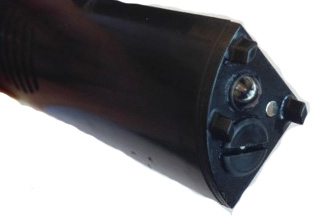

In-Situ™ Aqua TROLL® pH/ORP Combo Sensor for Aqua TROLL® 500 or 600, 0063470
Features:
- Interlocking, flat-faced design can be kept clean with optional wiper
- Electrochemical sensor monitors pH and ORP
- Smart sensor retains calibration, is serialized, and has self-diagnostics
- Field accurate, reliable readings
- Rebuildable, refillable reference design
- Minimal drift means longer deployment times (> 100 days in natural waters to super saline water with conductivities from 7,000 to 80,000 µS/cm
- 1 year warranty on pH/ORP Sensor
Specifications:
| pH Range |
0-14 pH units |
| Accuracy | ± 0.1 pH units |
| Resolution | 0.01 pH units |
| Response Time | T63<3s, T90<15s, T95<30s |
| Units of Measure | pH or mV |
| Method Basis | Standard Methods 4500-H+; EPA150.2 |
| Shelf Life | 15 months |
| Field Life | 1 year or greater |
| Calibration Frequency | 10-12 weeks recommended |
| Pressure Rating | 350 psi |
| Usable Depth | 200 m (650 ft) |
| Operational Temperature Range | - 5 to 50 °C |
| ORP Range | ± 1400 mV |
| Accuracy | ± 5 mV |
| Resolution | 0.1 mV |
| Response Time | T63<3s, T90<15s, T95<30s |
| Units of Measure | mV |
| Method Basis | Standard Methods 2580 |
| Shelf Life | 15 months |
| Field Life | 1 year or greater |
| Calibration Frequency | 10-12 weeks recommended |
| Pressure Rating | 350 psi |
| Usable Depth | 200 m (650 ft) |
| Operational Temperature Range | - 5 to 50 °C |
Aqua TROLL® Sensors:
| Cat. No. | Mfg P/N | Description |
| 92-1629-09 | 0063490 | AT Temperature Sensor |
| 92-1629-10 | 0063470 | AT pH/ORP Sensor |
| 92-1629-16 | 0063460 | AT Temperature/Conductivity Sensor |
| 92-1629-17 | 0063450 | AT RDO Sensor w/RDO-X cap |
| 92-1629-21 | 0033700 | AT Ammonium ISE Sensor |
| 92-1629-22 | 0033710 | AT Nitrate ISE Sensor |
| 92-1629-23 | 0033720 | AT Chloride ISE Sensor |
| 92-1629-24 | 0038900 | AT Chlorophyll a Sensor |
| 92-1629-25 | 0038920 | AT Phycocyanin (BGA-PC) Fluorometer Sensor |
| 92-1629-26 | 0038930 | AT Phycoerythrin (BGA-PE) Fluorometer Sensor |
| 92-1629-27 | 0038890 | AT Rhodamine WT Fluorometer Sensor |
| 92-1629-37 | 0063480 | AT Turbidity Sensor |
Other Aqua TROLL® Accessories:
| Cat. No. | Mfg P/N | Description |
| 92-1629-12 | 0063510 | AT Sensor Port Plug |
| 92-1629-13 | 0063500 | AT Wiper |
| 92-1629-14 | 0064630 | AT Wiper Port Plug |
| 92-1629-15 | 0076100 | AT Copper Antifouling Restrictor Guard |
| 92-1629-31 | 0053310 | RuggedCable® Connector W/Male Connector End to Stripped & Tinned End |
| 92-1629-32 | 0052500 | TROLL Com® Bundle w/USB Connector & Software CD |
| 92-1629-35 | 0020680 | Conductivity Calibration Sol'n 1413 µS, 1 L |
| 92-1629-42 | 0051810 | Lg Desiccant w/Titanium Connector f/Vented RuggedCable Systems |
| 92-1629-43 | 0031240 | Wireless TROLL Com® for Aqua TROLL® & Level TROLL® |
| 92-1629-51 | 0061150 | Rugged Android™ 7" Tablet |
| 92-1629-53 | 0029140 | Desiccant Refill Kit |
| 92-1629-71 | 0052000 | RuggedCable® Systems for Aqua TROLL® & Other In-Situ™ Instruments |
Specifications
| Application | Environmental monitoring |
|---|---|
| Manufacturer | In-Situ Inc |
| Model No | 0063470 |
