Description

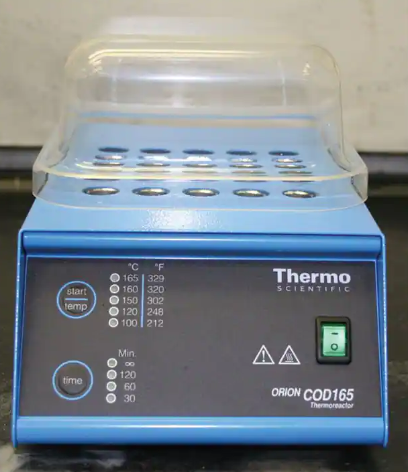

Thermo Scientific™ Orion™ AQUAfast COD165 Thermoreactor, COD165
Features:
- Use AQUAfast™ COD165 Thermoreactor to conduct environmental and wastewater testing
- Equipped with an automatic voltage selector for voltages between 90 and 260 V with a frequency of 50 or 60 Hz
- Five preset work temperatures of 100 °C, 120 °C, 150 °C, 160 °C and 165 °C and four preset run times of 30 minutes, 60 minutes, 120 minutes or continuous time to select from to analyze various parameters
- Place 16 mm round sample tubes into the digestor wells, cover with hinged safety shield, set temperature and time and let samples digest for the required time period
Specifications:
| Description | COD165 Thermoreactor |
| Heating Block Temperature Homogeneity | ±0.5 °C |
| Heating Block Temperature Precision | ±0.1 °C |
| Heating Block Temperature Stability | ±0.5 °C |
| Over-Temperature Protection | Yes |
| Safety Cover | Clear plastic, hinged to flip up for loading and unloading |
| Sample Size | Up to 25 Digestion Tubes, 16 mm diameter |
| Temperature Probe | Pt100 class A |
| Temperature Probe Calibration | Automatic by software |
| Precision | ± 0.2 % end of scale |
| Performance from 20 °C to 150 °C | 12 minutes |
| Reaching of Set Temperature Signal | Acoustic |
| During Time Count Signal | Visual |
| End of Cycle Signal | Acoustic |
| Set Temperature less than Block Temperature Error Signals |
Acoustic and visual |
| Broken Temperature Probe Alarm Signals |
Acoustic and visual |
| Temperature Selection | 100, 120, 150, 160 or 165 °C |
| Thermoregulator | PID microprocessor |
| Time Selection | 30, 60, 120 min. or continuous |
| Type | Monitor |
Specifications
| Power | Automatic selection of voltage from 90 V to 260 V and frequency from 50/60 Hz with appropriate power cable for US/Canada |
|---|---|
| Accuracy | +/- 0.2 end of scale % |
| Dimensions | 155 mm width x 95 mm height x 275 mm depth |
| Weight | 3.6 kg (127 oz.) |
| Manufacturer | Thermo Scientific Orion |
| Model No | COD165 |
