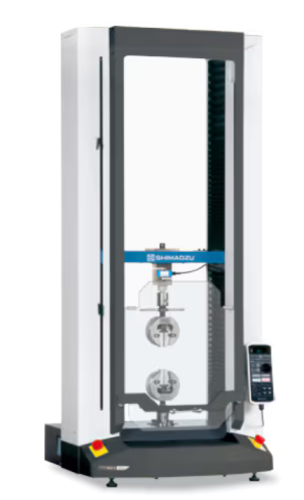

New Autograph AGS-X2 Series Precision Universal Testing Machine, 230 V, Shimadzu AGS-20kNX2D

Shimadzu® Autograph AGS-X2 Series Precision Universal Testing Machine, 230 V, AGS-20kNX2D

Features:

• Benchtop testing machine
• Precision Universal Testing Machine designed for accurate tensile and compression testing of a wide range of materials and products
• 20 kN maximum load capacity for demanding material strength and performance testing applications
• High-precision force measurement with accuracy within ±0.5% of indicated test force from 1/500 to 1/1 of load cell capacity
• Wide crosshead speed range of 0.001 to 2,000 mm/min with stepless adjustment for flexible testing conditions
• Automatic test force calibration supports tensile, compression, or combined tensile and compression testing
• High-speed data acquisition at up to 1,000 Hz for detailed analysis of rapidly changing test conditions
• Optical encoder provides precise crosshead position measurement with 0.001 mm display resolution
• 425 mm effective test width and up to 1,250 mm crosshead-to-table distance provide ample testing space
• Automatic functions include test force auto-zeroing and calibration, autotuning, break detection, automatic return, overload detection, and touch-load detection
• Versatile connectivity includes two external analog outputs, two analog inputs, and two digital inputs for integration with external devices
• Compliance with major testing standards, including ASTM E4, ISO 7500-1 Class 0.5, EN 10002-2 Grade 0.5, BS 1610 Class 0.5, and JIS B7721 Class 0.5
• Durable tabletop configuration delivers high-performance testing in a compact laboratory footprint
• Ideal for research, quality control, product development, and materials testing across plastics, metals, composites, ceramics, and other engineered materials

Included:

• Load Cell (with CAL cable)
• Power cable (5 m)
• Turning rod
• Cable clamps
• Instruction manual
