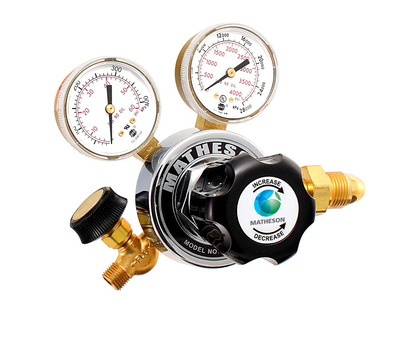

Description
A general purpose regulator with rugged construction for use with non-corrosive gases.
Applications:
• Use with gases that are 99.995% or lower purity
• Regulation of air supply to valves and actuators
• Inert gas supply for purging applications
• Calibration of pressure gauges, rotameters, and mass flowmeters
• Applications with high duty cycle/demanding operating conditions
Features:
• Forged brass body
• Neoprene diaphragm
• 2” inlet and delivery pressure gauges
• Equipped with outlet needle valve
• 1/4” NPTM outlet connection with loose 1/4" hose barb
• Porous metal filter to protect seat from contamination
• Model 18R uses Tee handle for pressure adjustment; all others use black knob shown
