Description

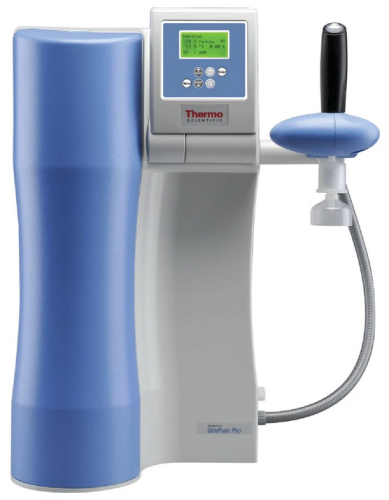

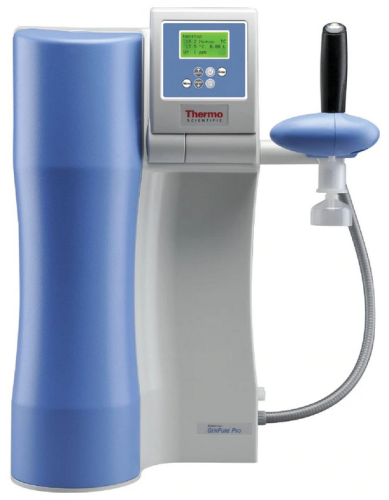

Thermo Scientific™ Barnstead™ GenPure™ Pro Water Purification System, Type 1 Water, 90 to 240 V, 50131950
Features:
Integrated Feed Water Monitoring:
- Additional measuring cell monitors feed water conductivity
- Any measurement that exceeds limiting value is immediately displayed maximizing cartridge life
Online TOC Measurement with UV Intensity Monitoring:
- Real-time TOC monitoring allows continual measurement of organic substances present in water
- Continuous monitoring of UV intensity removes risk of false TOC values due to diminished UV intensity
- Fault message alerts user when UV lamp intensity is no longer sufficient for accurate TOC measurements
- System offers UV Photo-oxidation 185/254 nm
- High performance UV assembly reliably reduces content of microorganisms and their metabolites
Ready-to-Use:
- Feed water pressure switch, wall bracket, UV lamp, ultrapure cartridge, sterile filter, all included with one part number
Measurement of Conductivity/Resistivity:
- Conductivity cells are carefully calibrated prior to each measurement via built-in reference resistance with cell constants at 0.01cm-1
- Temperature measurements are made by a platinum chip sensor with ± 0.1°C accuracy
Quick-connect Cartridge Replacement:
- Aquastop quick-connect capability enables cartridge replacement within seconds even mid-operation
GLP-compliant Documentation:
- Real-time clock and code-protected operating system prevents unauthorized changes to system settings
- RS-232 interface with adjustable send — interval for safe data transfer of all measured data, faults, date and time to PC computer or log printer
- Digital microprocessor control automatically monitors and stores faults from last four weeks
- USP-compliant conductivity measurement with temperature compensation can be switched on or off
Tilting Control Panels for Easy Viewing:
- Ergonomically designed controller tilts for optimal key pressing and easy readability
- Four-line, alpha-numeric display is illuminated
Specifications:
| Description | GenPure Pro ultrapure water system with UV-photo-oxidation and ultrafiltration membrane |
| Bacterial Content | <0.01 CFU/mL |
| Endotoxin Concentration | <0.001 EU/mL |
| Feedwater Connector | 3/4 in. NPT |
| Feed Water Monitoring | Integrated |
| Product Water Type | Type 1 |
| TOC Monitor with UV Intensity Monitoring | Yes |
| Total Organic Carbon | 1 to 5 ppb |
| Type | Water Purification System |
| Model | Barnstead GenPure Pro UV/UF |
| Operating Pressure | 2 to 6 bar |
| Particles >0.2µM/mL | <1 |
| Power Consumption | 0.1 kW |
Specifications
| Range | Conductivity: 0.055 microS/cm |
|---|---|
| Range | Resistivity: 18.2 Megohm-cm |
| Range | Temperature: 2 degrees C to 35 degrees C |
| Range | Flow: Up to 2 L/minute |
| Power | 90/240 V 50/60 Hz |
| Dimensions | H x W x D: 615 mm x 330 mm x 472 mm (24.2 in. x 13 in. x 18.6 in.) |
| Manufacturer | Thermo Scientific Barnstead |
| Model No | 50131950 |
| Warranty | 1 year parts and labor |
