Description

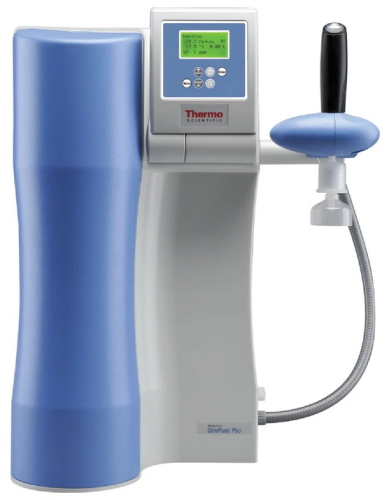

Thermo Scientific™ Barnstead™ GenPure™ Pro Ultrapure Water System with UV-Photo-Oxidation, Type 1 Water, 90 to 240 V, 50131952
Features:
Dispensing for variety of tasks:
- New flexible dispenser offers radius of 24 in. (60 cm) from system for filling larger vessels or glassware washing
Integrated feed water monitoring:
- Additional measuring cell monitors feed water conductivity
- Any exceeding limiting value is immediately displayed to maximize cartridge life
UV Photo-oxidation 185/254 nm:
- High performance UV assembly reliably reduces content of microorganisms and their metabolites
- UV oxidation also reduces organic compounds in water to ultra-low levels
Ready-to-use:
- Feed water pressure switch, wall bracket, UV lamp, ultrapure cartridge, sterile filter, are all included in one part number
- Leak detection is standard and will alert user to leaks
Measurement of conductivity/resistivity:
- Conductivity cells are carefully calibrated prior to each measurement via built-in reference resistance with cell constants at 0.01 cm-1
- Temperature measurements are made by a platinum chip sensor with ±0.1 °C accuracy
Exact dosing:
- High precision POM draw-off valve offers dispensing with sterile filter
- System offers electronic dosing for fully automatic volume control of 0.01-65.0 L with <2% accuracy
GLP-compliant documentation
- Real-time clock and code-protected operating system prevents unauthorized changes to system settings
- System includes RS-232 interface with adjustable send interval for safe data transfer of all measured data, faults, date and time to a PC computer or log printer
- Digital microprocessor control automatically monitors and stores faults from the last four weeks
- USP-compliant conductivity measurement with temperature compensation can be switched on or off
Tilting Control Panels for Easy Viewing:
- Ergonomically designed controller tilts for ease-of-use and better visibility
- Panel offers illuminated four-line alpha-numeric display
Specifications:
| Description | GenPure Pro ultrapure water system with UV-photo-oxidation |
| Bacterial Content | <0.01 CFU/mL |
| Feedwater Connector | 3/4 in. NPT |
| Feed Water Monitoring | Integrated |
| Flow Rate | Up to 2 L/min. |
| Product Water Type | Type 1 |
| TOC Monitor with UV Intensity Monitoring | Yes |
| Total Organic Carbon | 1 to 5 ppb |
| Type | Water Purification System |
| Model | Barnstead GenPure Pro UV |
| Operating Pressure | 2 to 6 bar |
| Particles >0.2µM/mL | <1 |
| Power Consumption | 0.1 kW |
Specifications
| Range | Conductivity: 0.055 microS/cm |
|---|---|
| Range | Resistivity: 18.2 Megohm-cm |
| Range | Temperature: 2 degrees C to 35 degrees C |
| Range | Flow Rate: Up to 2 L/minute |
| Power | 90/240 V 50/60 Hz |
| Dimensions | H x W x D: 615 mm x 330 mm x 472 mm (24.2 in. x 13 in. x 18.6 in.) |
| Manufacturer | Thermo Scientific Barnstead |
| Model No | 50131952 |
