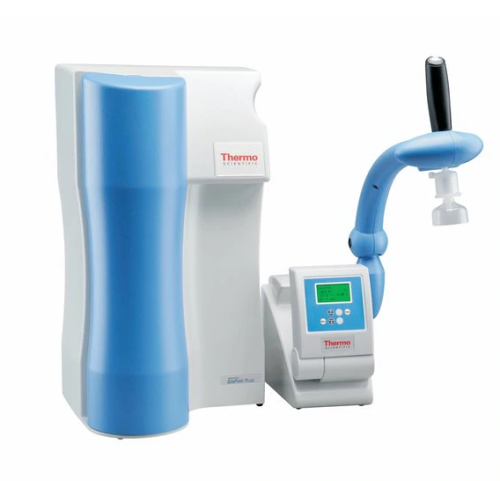

Barnstead GenPure xCAD Plus UV/UF - TOC Water Purification System (Wall Version), Thermo Scientific 50136172

Thermo Scientific™ Barnstead™ GenPure™ xCAD Plus UV/UF - TOC (wall version), Type 1 Water System, 50136172

Features:

xCAD (Extended Control and Dispenser):

• System provides more flexibility for ultrapure water dispensing with an action radius of 32 in. (80 cm)
• Ergonomic dispensing arm provides precise volume dosing at the press of a button
• Flexible dispenser offers positions including turned, height adjusted or extended toward your vessel
• One-of-a-kind design provides access to all system controls at your fingertips

Simultaneously dispense from up to three dispensers:

• Each system ships with single xCAD Plus remote dispenser
• For increased flexibility, add one or two more xCAD Plus dispensers

Integrated feed water monitoring:

• Additional measuring cell monitors feed water conductivity
• If quality of feed water drops below the set value, fault message will immediately be displayed

Online TOC measurement with UV intensity monitoring (available on systems with optional TOC only):

• Real-time TOC monitoring offers continual measurement of organic substances present in water
• Continuous monitoring of UV intensity removes risk of false TOC values due to diminished UV intensity
• Fault message alerts user when UV lamp intensity is no longer sufficient for accurate TOC measurements

UV Photo-oxidation 185/254 nm:

• High performance UV assembly reliably reduces content of microorganisms and their metabolites
• UV oxidation also reduces organic compounds in water to ultra-low levels

Leak detection:

• An error message is displayed when internal leaks are detected

Ready to use:

• Feed water pressure switch, wall bracket, UV lamp, ultrapure cartridge, sterile filter, all are included in one part number

Measurement of conductivity/resistivity:

• Conductivity cells are carefully calibrated prior to each measurement via built-in reference resistance with cell constants at 0.01cm^-1
• Temperature measurements are made by a platinum chip sensor with ± 0.1 °C accuracy

Quick-connect cartridge replacement:

• Aquastop quick-connect capability enables cartridge replacement within seconds even mid-operation

Exact dosing:

• Electronic dosing yields fully automatic volume control of 0.01-65 L with <2% accuracy

GLP-compliant documentation:

• Real-time clock and code-protected operating system prevents unauthorized changes to system settings
• RS-232 interface with adjustable send-interval offers safe data transfer of all measured data, faults, date and time to a PC computer or log printer
• Digital microprocessor control automatically monitors and stores faults from the last four weeks
• USP-compliant conductivity measurement with temperature compensation can be switched on or off

Specifications:

Description	Barnstead GenPure xCAD Plus UV/UF – TOC (wall version)
Bacterial Content	<0.01 CFU/mL
Endotoxin Concentration	<0.001 EU/mL
Feedwater Connector	3/4 in.
Feed Water Monitoring	Integrated
Product Water Type	Type 1
Remote Dispenser	Yes
TOC Monitor with UV Intensity Monitoring	Yes
Type	Water Purification System
Model	Barnstead GenPure xCAD Plus UV/UF - TOC (wall version)
Operating Pressure	0.1 to 6 bar
Particles >0.2µM/mL	<1
Power Consumption	0.1 kW
