Description

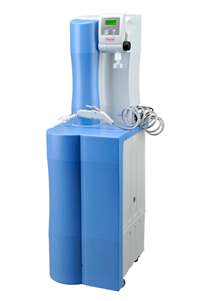

Convert tap water into reverse osmosis (RO) water with integrated 100L storage using the Thermo Scientific™ Barnstead™ LabTower™ RO system, which allows the user to easily read parameters with an ultra-modern controller. Mounted on casters, this compact system is an ideal pure water supply for any laboratory. The system is well-suited as a feed water source for dishwashers, autoclaves, and general laboratory use. Choose from two system options with permeate flows of 20, 40, or 60 L/hr. Resistivity/conductivity is clearly displayed on a large back-lit control panel that tilts for optimum viewing.
Features: Advanced technology in a mobile design:
- An ultra-modern microprocessor control provides easy-to-read system parameters.
- Completely drainable integrated 100L high-purity water reservoir has a low-noise pressure booster as a standard component.
- Mounted on casters, the compact LabTower™ RO system is an ideal pure water supply for any laboratory.
- System is ideally suited as a feed water source for dishwashers, autoclaves and general laboratory use.
- A built-in pretreatment unit — consisting of a hardness stabilizer for protection of the reverse osmosis module from hardness formers and an activated carbon/5μm combi-cartridge — protects the system against free chlorine and particles, ensuring the long service life of downstream purification stages.
- 1-year warranty
Compact and mobile design:
- System includes three system options with permeate flows of 20, 40, or 60L/hr.
- Stand-alone design with integrated 100L tank takes up ZERO bench space—casters allow for easy relocation.
- Systems can be upgraded later to accommodate growing water capacity demands.
Integrated 100L reservoir:
- System stores 100L of RO water in a high-purity polyethylene PE opaque reservoir.
- Adjustable reservoir volume can be programmed for times of low demand—dispense from the reservoir to supply autoclaves, dishwashers, ultrapure water systems, etc.
Easy-to-operate clear display:
- Resistivity/conductivity clearly displayed on large back-lit control panel that tilts for optimum viewing.
- Status of current operating mode clearly indicating production, stand-by, cleaning, or disinfection modes.
- Reservoir fill-level is shown as a percent.
- System parameters are code-protected to prevent accidental changes to set points.
GLP-compliant documentation:
- LabTower™ RO has been developed to fulfill GLP requirements.
- Recorded and traceable data can be obtained by printout via the RS-232 interface and accessory printer.
- Highly qualified and precise measurement of the conductivity is ensured by the cell constant of 0.16cm .
Specifications:
| Feedwater Source | tap |
| Bacterial Content | 99% |
| Particles>0.2µM/mL | <1µM/mL |
| TOC Montor with UV Intensity Monitoring | No |
| Feed Water Monitoring | Yes |
| Feedwater Connector | 3/4 in. NPT |
| Feedwater Pressure | 1-6 Bar |
| Height | 1500mm |
| Width | 450mm |
| Depth | 580mm |
| Net Weight | 50kg |
| Operating Pressure | 2-6 Bar |
| Power Requirements | 100-240V 50/60Hz |
| Power Consumption | 0.25kW |
| Temperature Range | 2º to 35ºC |
| Description | LabTower™ RO 60L/hr. |
| Permeate performance | 60L/hr. at 10ºC |
| Silica Removal | 98% |
Supplied with:
- 4 RO membranes
- 10 in. 5µm combi-cartridge with hardness stabilizer cartridge
- Integrated 100L reservoir
- Pressure Regulator
Additional models:
| 92-2750-65 | 20L/hr LabTower™ RO |
| 92-2750-66 | 40L/hr LabTower™ RO |
| 92-2750-67 | 60L/hr LabTower™ RO |
