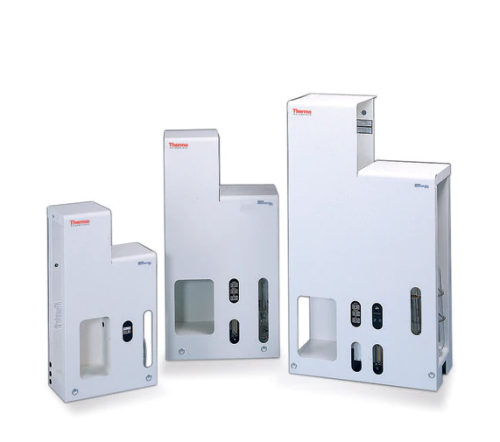

Mega-Pure Glass stills remove most dissolved solids and all pyrogensand biological impurities from tap water or pretreated water. They meetpyrogen purity standards for USP XXII. Wetted parts are PYREX, VYCORglass, and PTFE. Only non-leaching components are used. They are walland bench mountable. Features
- Vertical condenser design provides maximum purity.
- Quick release cover for easy cleaning access.
- A water level sensor in the boiling chamber.
- The high-temperature cutoff switch prevents any possibilityof overheating.
- Aluminum cabinet with baked-epoxy finish keeps electricalcords and the drain line out of your way.
- Automate your purification system with the optionalautomatic collection system, attaches to the 3.4 or the 6-liter still.
- A water level sensor in the reservoir turns the heater andwater supply on and off to keep water storage levels between 38 and 45liters.
- Connection to Automatic Collection System (ACS) assures a24 hour automatic system.
- Includes feedwater solenoid valve for automatic operation.
Supplied with
- 7-ft cord with U.S. standard plug.
SPECIFICATIONS |
ProductWater Capacity |
1.0LPH |
|
Cooling waterconsumption |
11.3LPH |
|
Water pressure |
20to 100 psi |
|
VAC/Hz |
120VAC, 50/60 Hz |
|
Dimensions |
18""Wx 34""H x 9-3/4""D |
|
Connections |
Tapwater: 1/4"" NPT. Pretreated: 3/8"" ID. Drain: 1/2"" ID |
|
Watts |
1.0kW ; 9 Amps |
|
Output |
1.0LPH (0.26 GPH) |
