Description

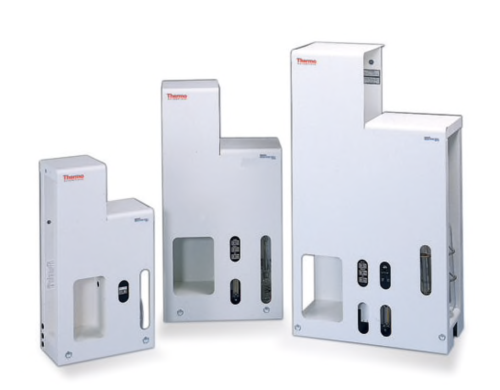

Thermo Scientific® Barnstead® Mega-Pure Glass Still, MP-3A, 3.4 LPH, 208 VAC, A440367
Mega-Pure Glass stills remove most dissolved solids and all pyrogensand biological impurities from tap water or pretreated water. They meet pyrogen purity standards for USP XXII. Wetted parts are PYREX, VYCOR glass, and PTFE. Only non-leaching components are used. They are wall and bench mountable. These 3.4 stills are great for larger volume demands.
Features:
- Vertical condenser design provides maximum purity
- Quick release cover for easy cleaning access
- Water level sensor in the boiling chamber
- High-temperature cutoff switch prevents any possibilityof overheating
- Aluminum cabinet with baked-epoxy finish keeps electrical cords and the drain line out of your way
- Automate your purification system with the optional automatic collection system, attaches to the 3.4 or the 6-liter still
- A water level sensor in the reservoir turns the heater and water supply on and off to keep water storage levels between 38 and 45 liters
- Connection to Automatic Collection System (ACS) assures 24 hour automatic system
- Includes feedwater solenoid valve for automatic operation
Supplied with:
- 7-ft cord with U.S. standard plug
Specifications:
| Product Water Capacity | 2.0 LPH |
| Cooling Water Consumption | 30.3 LPH |
| Water Pressure | 20 to 100 psi |
| VAC/Hz | 240 VAC, 50/60 Hz |
| Dimensions | 23 in. Wx 45 in. H x 12 in. D |
| Connections | Tap Water: 1/4 in. NPT Pretreated:3/8 in. ID Drain: 1/2 in. ID |
| Watts | 2.5 kW; 11 Amps |
| Output | 3.4 LPH (0.89 GPH) |
Specifications
| Manufacturer | Thermo Scientific Barnstead |
|---|---|
| Model No | A440367 |
