Description

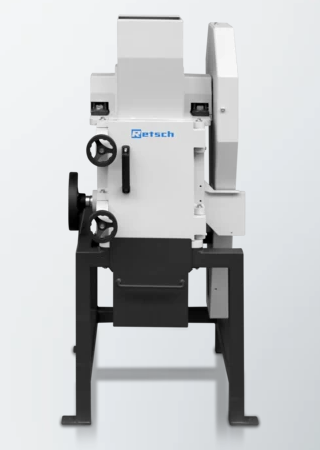

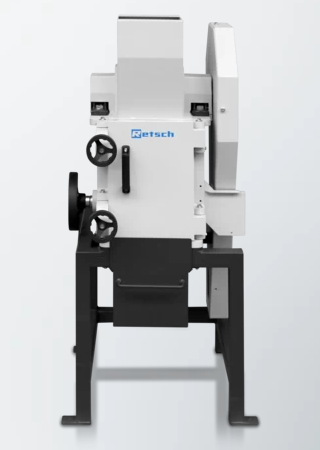

This jaw crusher is suitable for a wide range of applications thanks to the modular construction of the housing and frame. Examples are alloys, basalt, cement clinker, ceramics, chamotte, coke, construction materials, feldspar, glass, granite, minerals, ores, oxide ceramics, quartz, rocks, silicon, slag, etc. For small amounts of sample the BB 400XL can be used batch-wise and for larger amounts can be operated continuously. Reproducible results are maintained by control of the gap width and zero point adjustment.The Jaw Crusher BB 400 XL is used for the rapid, effective crushing and pre-crushing of medium-hard, hard, brittle and tough materials. Its variety of materials offered, including heavy-metal free steel, its efficiency and safety makes this jaw crusher ideal for sample preparation in laboratories and industrial plants.
Function Principle
The Jaw Crusher BB 400 XL is a robust and powerful forced-feed crusher. The feed material passes through the no-rebound hopper and enters the crushing chamber. Size reduction takes place in the wedge shaped area between the fixed crushing arm and one moved by an eccentric drive shaft. The elliptical motion crushes the sample which is moved towards the crushing gap under gravity. As soon as the sample is smaller than the discharge gap width, it falls into a removable collector within the jaw crusher. The continuous gap width setting with scale ensures optimum size reduction in accordance with the set gap width.
Product Advantages
- high crushing ratio
- front door facilitates cleaning
- infinite/continuous gap width setting
- overload protection
- wide range of materials for contamination free grinding
- no-rebound feed hopper, removable
- sample collector with safety switch
- collecting receptacle with outlet for continuous operation
- connector for dust extraction
- central lubrication (optional)
- suitable for integration in automatic installations
- special version with automated sorting of undersize (3 fractions) and oversize (1 fraction)
Features
| Applications | coarse and pre-crushing |
| Field of application | chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | medium-hard, hard, brittle, tough |
| Size reduction principle | pressure |
| Material feed size* | < 220 x 90 mm |
| Final fineness* | < 2 mm |
| Material of grinding tools | manganese steel, tungsten carbide, heavy metal free steel |
| Jaw width | 220 x 90 mm |
| Gap width setting | 0 - 30 mm |
| Gap width display | scale |
| Zero point adjustment | yes |
| Wearing rate display | yes, up to minus10 mm |
| Removable hopper | yes |
| Dust extraction unit | yes |
| Central lubrication | optional |
| Process line version | optional |
| Collector capacity | 8 l |
| Base frame | vario frame (adjustable for continous crushing) |
| Drive | 3-phase motor |
| Drive power | 5.5 kW |
| Electrical supply data | different voltages |
| Power connection | 3-phase |
| Protection code | IP 55 |
| W x H x D closed | 695 x 1399 x 719 mm |
| Net weight | ~ 400 kg |
| Standards | CE |
Please note: *depending on feed material and instrument configuration/settingsEach BB 400XL is shipped complete with door, feed hopper, collecting receptacle and base frame, and with the breaking jaws and wearing plates selected.
