Description

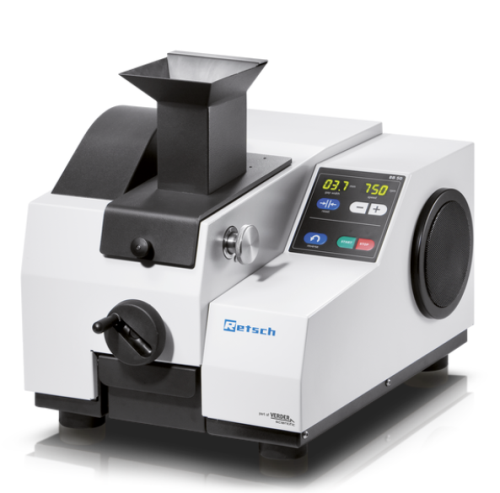

Retsch® BB 50 Jaw Crusher with Zirconium Oxide Breaking Jaws and Wear Plates, 200–240 V, 50/60 Hz, 20.062.0004
Features:
- Material feed size*: < 40 mm
- Final fineness*: < 0.5 mm
- Throughput*: 3 l/batch
- Variable speed can be set between 550 and 950 min-1 which can be reversed if too much material has been fed
- Virtually maintenance free due to permanently lubricated bearings
- Smallest model of the RETSCH® jaw crusher series and specially designed for sample preparation in laboratory
- Compact machine fits on any laboratory bench and offers safe and convenient handling
- Available in 8 different sizes
- Throughput and final fineness depend on crusher type, selected gap width and breaking properties of sample material
- Robust design with simple handling and cleaning
- Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously
- High crushing efficiency, feed sizes up to 40 mm can be crushed to 0.5 mm
- Removable jaw for easy cleaning
- Adjustable speed allows adaptation to sample characteristics
- Wear compensation with zero-point adjustment
- Convenient operating keypad with digital display
- Memory for gap width setting
*Dependent on feed material and instrument configuration/settings
Applications:
- Ideally suited for preliminary crushing of construction materials, ores, granite, oxide ceramics, quartz, slag, silicon, coal, tungsten alloys, cement clinker, etc.
Specifications
| Range | Motor Speed: 550 to 950 min-1 adjustable in increments of 50 |
|---|---|
| Capacity | 3 L |
| Power | 200-240 V: 1150W, 2 x 8A |
| Operating Environment | Ambient Temperature 5 to 40 degrees C, relative humidity maximum 80% |
| Dimensions | H x W x D: 463 mm x 421 mm x 607 / 562 mm |
| Weight | 76 kg |
| Manufacturer | Verder Scientific |
| Model No | 20.062.0004 |
