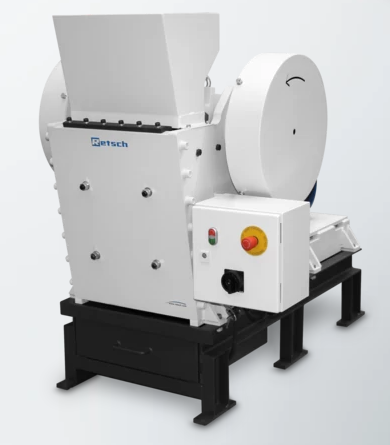

The BB 600XL, with its low installation height (1m), is ideally suited for continuous operation in automatic installations and sampling stations. Thanks to the compact design it may replace a jaw crusher in existing installations.
Application examples are alloys, basalt, cement clinker, ceramics, chamotte, coke, construction materials, feldspar, glass, granite, minerals, ores, oxide ceramics, quartz, rocks, silicon, slag, etc. Small amounts of sample with large particle sizes can be crushed batch-wise in the BB 600XLThe Jaw Crusher BB 600 XL is used for the rapid, effective crushing and pre-crushing of medium-hard, hard, brittle and tough materials.Function Principle
The Jaw Crusher BB 600 XL is a robust and powerful jaw crusher. The feed material passes through the no-rebound hopper and enters the crushing chamber. Size reduction takes place in the wedge shaped area between the fixed breaking jaw and the moveable breaking jaw driven by an eccentric drive shaft. The elliptical motion crushes the sample which then moves downwards under gravity.On reaching the discharge gap width, it falls into a removable collector or, for continuous applications, on a conveyor belt, vibratory feeder or sampler.
Subject to technical modifications and errors
Product Advantages
- high crushing ratio
- high throughput up to 3,500 kg/h
- adjustable gap width setting
- overload protection
- size of breaking jaws 600 mm high / 400 mm wide
- no-rebound feed hopper
- easy-to-clean crushing chamber
- continuous and batch-wise crushing
- connector for dust extraction
- central lubrication (optional)
- suitable for integration in automatic installations
Features
| Applications |
coarse and pre-crushing |
| Field of application |
chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material |
medium-hard, hard, brittle, tough |
| Size reduction principle |
pressure |
| Material feed size* |
< 350 x 170 mm |
| Final fineness* |
< 6 mm |
| Material of grinding tools |
manganese steel |
| Jaw width |
400 x 240 mm |
| Gap width setting |
6 - 60 mm with spacer plates |
| Dust extraction unit |
yes |
| Central lubrication |
optional |
| Process line version |
optional |
| Collector capacity |
30 l |
| Drive |
3-phase motor |
| Drive power |
15 kW |
| Electrical supply data |
different voltages |
| Power connection |
3-phase |
| Protection code |
IP 55 |
| W x H x D closed |
925 x 1600 x 1370 mm |
| Net weight |
~ 1350 kg |
| Standards |
CE |
Please note: *depending on feed material and instrument configuration/settingsEach BB 600XL is shipped complete with feed hopper, collecting receptacle and base frame, and with the breaking jaws and wearing plates.Additional Models
| Catalog # |
Model |
Feed Size |
Final Size |
| 91-7110-01 |
BB 250XL |
<120 x 90mm |
<2mm |
| 91-7111-01 |
BB 400XL |
<220 x 90mm |
<2mm |
| 91-7112-01 |
BB 500XL |
<110 |
90% <0.5mm |
| 91-7113-01 |
BB 600XL |
<350 x 170mm |
<6mm |
