Description

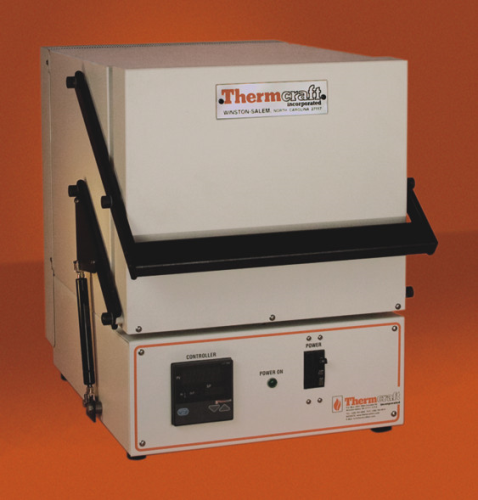

These standard box furnaces come in two sizes: 8 x 8 x 12 and 12 x 12 x 18. Designed for temperatures up to 1200°C (2192°F) that will produce uniform heat around the full 360° of the heated chamber, the furnace is insulated for maximum thermal efficiency. The eXPRESS-LINE Box Furnace comes complete with an integrated circuit breaker and a Platinel II thermocouple (one per zone). Keep in mind the eXPRESS-LINE box furnaces are great for the laboratories of Research and Development departments. And we stock these standard furnaces to ship within two weeks.
- 1200º C (2192º F) maximum operating temperature
- Ceramic refractory heater with embedded resistance wire
- Two different chamber sizes
- 230 volts electrical requirements
- Integrated circuit breaker
- Single set point controller
- Comes with a Platinel II thermocouple
Model number |
90-8540-01 |
Chamber width |
8 |
Chamber Height |
8 |
Chamber Depth |
12 |
Watts |
3100 |
Amps |
13.5 |
Exterior size (WxDxH) |
23" x 18" x 24" |
