Description

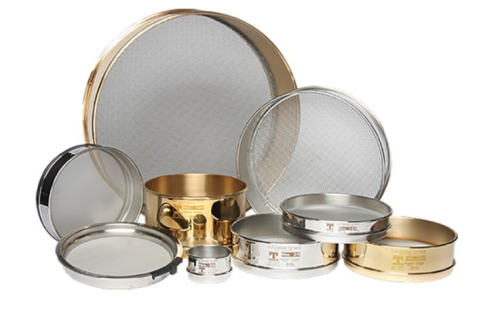

8" Diameter Test Sieve
Brass Frame with Stainless Cloth
Overall Height – Half: 1-5/8"
Depth to Cloth – Half: 1"
Click on catalog number to go to item page.
| Catalog Number | U.S.A. | Metric |
| 91-9139H-02 | No. 4 | 4.75mm |
| 91-9139H-03 | No. 5 | 4.0mm |
| 91-9139H-04 | No. 6 | 3.35mm |
| 91-9139H-05 | No. 7 | 2.8mm |
| 91-9139H-06 | No. 8 | 2.36mm |
| 91-9139H-07 | No. 10 | 2.0mm |
| 91-9139H-08 | No. 12 | 1.7mm |
| 91-9139H-09 | No. 14 | 1.4mm |
| 91-9139H-10 | No. 16 | 1.18mm |
| 91-9139H-11 | No. 18 | 1.0mm |
| 91-9139H-12 | No. 20 | 850 micron |
| 91-9139H-13 | No. 25 | 710 micron |
| 91-9139H-14 | No. 30 | 600 micron |
| 91-9139H-15 | No. 35 | 500 micron |
| 91-9139H-16 | No. 40 | 425 micron |
| 91-9139H-17 | No. 45 | 355 micron |
| 91-9139H-18 | No. 50 | 300 micron |
| 91-9139H-19 | No. 60 | 250 micron |
| 91-9139H-20 | No. 70 | 212 micron |
| 91-9139H-21 | No. 80 | 180 micron |
| 91-9139H-22 | No. 100 | 150 micron |
| 91-9139H-23 | No. 120 | 125 micron |
| 91-9139H-24 | No. 140 | 106 micron |
| 91-9139H-25 | No. 170 | 90 micron |
| 91-9139H-26 | No. 200 | 75 micron |
| 91-9139H-27 | No. 230 | 63 micron |
| 91-9139H-28 | No. 270 | 53 micron |
| 91-9139H-29 | No. 325 | 45 micron |
| 91-9139H-30 | No. 400 | 38 micron |
| 91-9139H-33 | No. 635 | 20 micron |
For Full Height, 8" Series, see Catalog Number 91-9139
Specifications
| Material | Brass frame and stainless steel wire mesh |
|---|---|
| Accuracy | +/-12 micron |
| Other | US # 60 |
| Other | Opening dimension: 283 micron |
| Dimensions | 8 in. diameter x 1.62 in. height x 1 in. depth |
| Manufacturer | W S Tyler |
| Model No | 5040 |
