Description

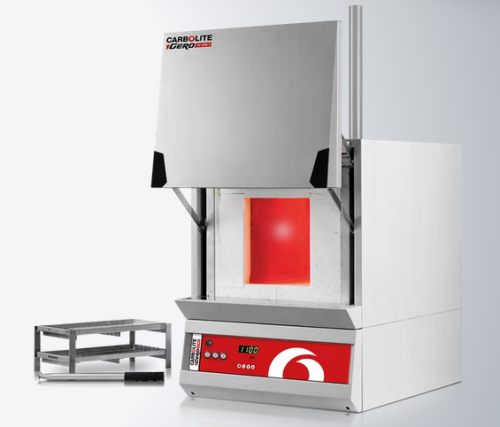

Verder Scientific® Carbolite-Gero® Ashing Furnace, Model AAF 11/18 with Over Temperature Control and Programmable Controller, 240 V, AAF11183216P1OTC
Features:
- AAF ashing furnace range is designed specifically to provide optimum ashing conditions to ensure complete combustion of sample
- 1100 °C & 1200 °C maximum operating temperatures
- Carbolite Gero 301 controller, with single ramp to set-point & process timer
- Two tier rack system doubling the sample capacity
- With sample trays and loading handle allows for large number of samples
- Ideal for ashing foods, plastics, coal & other hydrocarbon materials
- Preheating of air before it enters the chamber
- Protection of the elements from carbon build-up or corrosive atmosphere, using silicon carbide tiles
- 2 sided heating
- Options that can be specified at time of ordering
- A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available
- Over-temperature protection (recommended to protect valuable contents & for unattended operation)
Specifications:
| Heat-up time (mins) | 70 |
| Dimensions: Height to top chimney (mm) | 990 |
| Maximum power (W) | 7080 |
| Holding power (W) | 3500 |
| Thermocouple type | K |
Specifications
| Range | Temperature: 1100 degrees C maximum; 1000 degrees C maximum Continuous |
|---|---|
| Capacity | 18 L |
| Power | 240 V / 50 Hz / 7080 W maximum |
| Other | Internal H x W x D: 235 x 196 x 400 mm |
| Dimensions | External H x W x D: 705 x 505 x 675 mm; Door open: 990 x 505 x 675 mm |
| Weight | 70 kg |
| Manufacturer | Verder Scientific |
| Model No | AAF11183216P1OTC |
