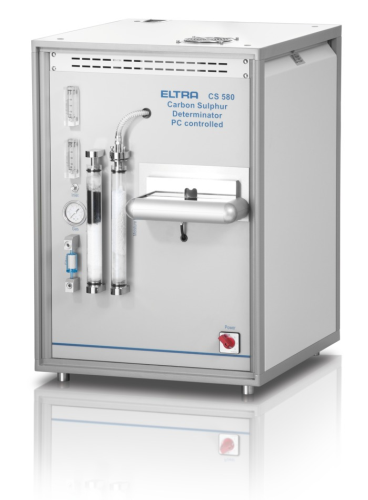

Eltra Carbon/Sulfur Analyzer CS-580 4 Cell 2xC 0.05-100% C + 12-100% C + 2xS 0.005-2% S + 2-20% S - Includes Analyzer, Computer, and Balance, Verder Scientific, 88100-4008

Model # 88100-4008 Eltra Carbon/Sulfur Analyzer CS-580  4 Cell 2xC 0.05-100% C + 12-100% C + 2xS 0.005-2% S + 2-20% S - Includes Analyzer, Computer, and Balance

The Eltra CS-580 Analyzer offers the ideal in simultaneous determination of carbon and sulfur for organic samples.  The temperature can be set in steps of 1 ºC to a maximum of 1550 ºC. Because of sample weights of up to 500 mg and more, this analyzer can reliably analyze even inhomogenous materials.  The analyzer has the capability of accommadating up to four independent infrared cells to allow for use in a variety of applications.

Possible Applications:

Ashes	Limestone	Soils
Building Materials	Oil	Soot
Coal	Plant Materials	Tobacco
Coke	Rubber	Waste
Gypsum	Sand	and Others

Product Advantages:

• Simultaneous carbon and sulfur determination with minimal sample preparation
• Wide range of organic materials can be analyzed
• Rapid, precise, accurate and reliable element determination
• Resistance furnace can be set up to 1550 ºC in steps of 1 ºC
• Customized infrared cells provide wide, dynamic measuring range
• Due to gold IR path, increased cell life time for analysis of halogen or acid containing samples
• Powerful software (multilingual, customized display, export of results)
• Single and multipoint calibration
• Low maintenance
• Robust design allows usage in production control and laboratory
• For sulfur coal analysis

Function Principle:

Operation The sample is weighed into ceramic boats and the weight is transferred from the interfaced balance to the PC or the weight can be entered manually.  The sample is loaded into the furnace for combustion.  The average analysis time is 60 to 120 seconds.  Detector signals and instrument parameters are displayed during analysis.  Evaluation of the signals and display of the results are done automatically; data can be transferred to a laboratory information management system (LIMS).  The analyzers require minimal maintenance.  Particle filters and chemicals needed are easily accessible.

Measuring The sample is burnt in an oxygen atmosphere at temperatures of up to 1550 ºC.  Furnace temperature can be freely selected in 1 ºC steps.  The combustion gases (CO₂, H₂O, SO₂) coming from the furnace pass through a dust filter.  After the water vapor is chemically absorbed, the dried CO₂ and SO₂ gas is detected in the additional infrared cells.  Depending on the configuration, it is possible to combine up to four infrared cells with different sensitivities.

Features:

Measure elements	Carbon, sulfur
Sample Type	Organic
Furnace Alignment	Horizontal
Sample Carrier	Ceramic boats
Field of Application	Agriculture, biology, chemistry/plastics, coal/power plants, construction materials, environment/recycling, medicine/pharmaceuticals
Furnace	Resistance furnace (ceramic tube) adjustable up to 1550 ºC (steps of 1 ºC)
Detection Method	Solid state infrared absorption
Number of IR Cells	1-4
Material of IR Path	Gold
Typical Analysis Time	60-120 seconds
Chemicals Required	Magnesium perchlorate, sodium hydroxide
Gas Required	oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
Power Requirements	230 V, 50/60 Hz, max. heat up current 20A
Dimensions (WxHxD)	55 x 80 x 60 cm
Weight	~70 kg (analyzer)
Requried Equipment	Balance (resolution 0.0001g), monitor, PC
Optional Accessories	Support for low carbon measurement, TIC module, voltage stabilizer 5 KVA

Other Models Available:

Preiser Part No.	Mfg. Model No.	Configuration
92-1210-01	88100-4001	CS-580 1 Cell 1xC 0.05-100% C
92-1210-02	88100-4002	CS-580 1 Cell 1xS 0.005-2% S
92-1210-03	88100-4003	CS-580 2 Cell 2xC 0.005-12% C | 12-100% C
92-1210-04	88100-4004	CS-580 2 Cell 2xS 0.005-2% S | 2-20% S
92-1210-05	88100-4005	CS-580 2 Cell 1xC 0.05-100% C + 1xS 0.005
92-1210-06	88100-4006	CS-580 3 Cell 1xC 0.05-100% C + 2xS 0.005-2% S + 2-20% S
92-1210-07	88100-4007	CS-580 3 Cell 2xC 0.005-12% C + 12-100% C + 1xS 0.005-2% S
92-1210-08	88100-4008	CS-580 4 Cell 2xC 0.05-100% C + 12-100% C + 2xS 0.005-2% S + 2-20% S
