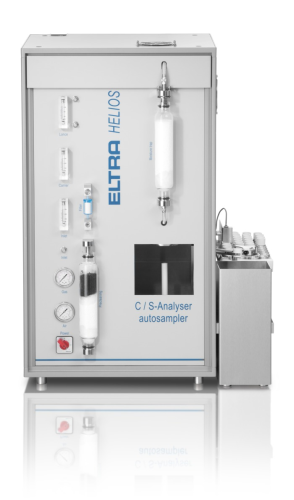

Eltra Carbon/Sulfur Analyzer - Helios, CS-580A 4 Cell 2xC 0.005-12% C + 12-100% C + 2xS 0.005-2% S + 2-20% S - Includes Analyzer, Computer, and Balance, Verder Scientific, 88100-4022 (Shown with Sample Autoloader Attached)

Model # 88100-4022 Eltra Carbon / Sulfur Analyzer "Helios" CS-580A 4 Cell 2xC 0.005-12% C + 12-100% C + 2xS 0.005-2% S + 2-20% S - Includes Analyzer, Computer, and Balance

The Eltra CS-580A Analyzer offers the ideal in simultaneous determination of carbon and sulfur for organic samples.  All CS-580A seriers analyzers come equipped with an automatic sample loader.  Loaders come in two size options to accommodate 36 or 130 crucibles to meet user demand.  This unit is based on the same technology as the CS-580 but features a vertical resistance furnace with ceramic tube.  The temperature can be set in steps of 1 ºC to a maximum of 1550 ºC. Because of sample weights of up to 500 mg and more, this analyzer can reliably analyze even inhomogenous materials.  The analyzer has the capability of accommadating up to four independent infrared cells to allow for use in a variety of applications.

Possible Applications:

Ashes	Limestone	Soils
Building Materials	Oil	Soot
Coal	Plant Materials	Tobacco
Coke	Rubber	Waste
Gypsum	Sand	and Others

Product Advantages:

• Simultaneous carbon and sulfur determination with minimal sample preparation
• Wide range of organic materials can be analyzed
• Rapid, precise, accurate and reliable element determination
• Resistance furnace can be set up to 1550 ºC in steps of 1 ºC
• Customized infrared cells provide wide, dynamic measuring range
• Due to gold IR path, increased cell life time for analysis of halogen or acid containing samples
• Powerful software (multilingual, customized display, export of results)
• Single and multipoint calibration
• Low maintenance
• Robust design allows usage in production control and laboratory

Function Principle:

Operation The samples are weighed into crucibles. Then a gripper places the samples from the Autoloader on the pedestal.  The samples are loaded consecutively into the furnace for combustion.  The average analysis time is 60 to 120 seconds.  Detector signals and instrument parameters are displayed during analysis.  Evaluation of the signals and display of the results are done automatically; data can be transferred to a laboratory information management system (LIMS).  The analyzers require minimal maintenance.  Particle filters and chemicals needed are easily accessible.

Measuring The sample is burnt in an oxygen atmosphere at temperatures of up to 1550 ºC.  Furnace temperature can be freely selected in 1 ºC steps.  The combustion gases (CO₂, H₂O, SO₂) coming from the furnace pass through a dust filter.  After the water vapor is chemically absorbed, the dried CO₂ and SO₂ gas is detected in the additional infrared cells.  Depending on the configuration, it is possible to combine up to four infrared cells with different sensitivities.

Features:

Measure elements	Carbon, sulfur
Sample Type	Organic
Furnace Allignment	Vertical
Sample Carrier	Ceramic crucibles
Field of Application	Agriculture, biology, chemistry/plastics, coal/power plant,construction materials, environment/recycling, medicine/pharmaceuticals
Furnace	Resistance furnace (ceramic tube) adjustable up to 1550 ºC(steps of 1 ºC)
Detection Method	Solid state infrared absorption
Number of IR Cells	1-4
Material of IR Path	Gold
Typical Analysis Time	60-120 seconds
Chemicals Required	Magnesium perchlorate, sodium hydroxide
Gas Required	oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi) compressed air (4 - 6 bar / 60 - 90 psi)
Power Requirements	230 V, 50/60 Hz, max. heat up current 2000 W
Dimensions (WxHxD)	55 x 100 x 60 cm (analyzer); 85 x 35 x 45 cm (Autoloader for 130 crucibles)
Weight	~90 kg (analyzer); ~15kg (Autoloader for 130 crucibles)
Requried Equipment	Balance (resolution 0.0001g), monitor, PC
Required Accessories	Autoloader (for 36 or 130 crucibles)
Optional Accessories	TIC module, voltage stabilizer 5 KVA

Other Models Available:

Preiser Part No.	Mfg. Model No.	Configuration
92-1204-01	88100-4015	CS-580A 1 Cell 1xC 0.05-100% C
92-1204-02	88100-4016	CS-580A 1 Cell 1xS 0.005-2% S
92-1204-03	88100-4017	CS-580A 2 Cell 2xC 0.005-12% C | 12-100% C
92-1204-04	88100-4018	CS-580A 2 Cell 2xS 0.005-2% S | 2-20% S
92-1204-05	88100-4019	CS-580A 2 Cell 1xC 0.05-100% C + 1xS 0.005-2% S
92-1204-06	88100-4020	CS-580A 3 Cell 1xC 0.05-100% C + 2xS 0.005-2% S | 2-20% S
92-1204-07	88100-4021	CS-580A 3 Cell 2xC 0.005-12% C | 12-100% C +1xS 0.005-2% S
92-1204-08	88100-4022	CS-580A 4 Cell 2xC 0.005-12% C | 12-100% C +2xS 0.005-2% S | 2-20% S
