Description

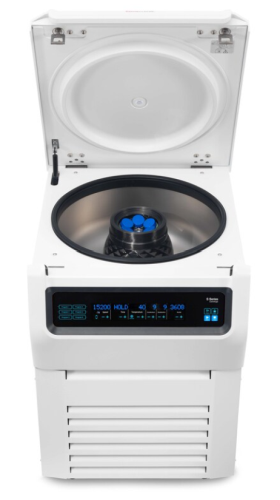

Thermo Scientific™ Centrifuge, S4FR Refrigerated, Floor Model, S Series, IVD-MD, 120 V / 50 to 60 Hz, 75007352
Features:
- Stable cooling at lower temperatures than previous models, helping to ensure integrity of temperature-sensitive samples with a cooler -20 degrees C temperature setpoint
- SMARTSpin Imbalance Detection helps maximize acceleration, braking and residual load imbalance for each rotor and bucket to optimize safety and improve separations
- High rotor speeds and flexibility with 13 rotor options
- Rotors must be purchased separately
- Choices of 9 accelleration rates / 10 decel rates
- Up to 6 Programs via LCD User Interface buttons
- GreenCool Technology features next-generation natural refrigerant (R290) cooling system, which reduces environmental impact with Global Warming Potential (GWP) of 3, while not contributing to depletion of ozone layer and is compliant with EU and US EPA F-gas regulations
- Fiberlite rotors weigh up to 60% less than metal equivalent rotors and therefore accelerate/decelerate faster translating into reduced energy consumption per run
- Windshielded rotor options, including H-Flex HS4 and BioShield 1000A Rotors, enable users to spin tubes, bottles, and plates at higher speeds with less energy than non-windshielded designs
- Manufactured in certified zero-waste facility using 100% renewable electricity in Osterode am Harz, Germany
- Floor model includes lockable casters for easy storage and to facilitate cleaning in clean room environments
- Intuitive controls simplify operation and provide detailed information on wide range of operating parameters and processing status for optimal performance
- Modern industrial design supports continuous improvement in rotor loading ergonomics, user safety and current needed certifications
- Motorized lid latch enables one finger downward motion for easiest closing and locking of centrifuge lid, even on tall benches
- Compact dimensions help optimize work area
- Ergonomic height and curved design help ensure easy sample loading and unloading as well as easy cleaning
- Secure, ergonomic push-button rotor exchange in as little as three seconds with no tools required
- Full chamber access for cleaning convenience and helps minimize risk of contamination
- Flexibility to quickly switch between applications and evolve changing laboratory needs
- Biocontainment sealing options for glove-friendly, one-handed open/close capability are ergonomically designed for both right and left-handed operations
- Audible and visual closure cues enhance safety and security
- Biocontainment certification by National Institute for Health Protection, Porton Down, UK or TUV NORD CERT GmbH, Germany for selected rotors
- General laboratory use, IVD certified, FDA listed options available
- GreenCool Technology is compliant with EU and US EPA F-gas regulations
- Capacity: 4 x 1000 mL BioBottles, 196 x 5/7 mL Blood Tubes, 148 x 9/10 mL Blood Tubes, 96 x 15 mL Conical Tubes, 40 x 50 mL Conical Tubes, 4 x 6 Microplates with TX-1000 Rotor
- Class ISO 8 according to DIN EN ISO 14644-1
- Standards: ISO 14971, ISO 13485, ISO 9001, FDA listed, Device Class 1
Specifications
| Range | Maximum RCF: 25,830 x g Fixed Angle (with microliter 30 x 2 mL rotor); 7,197 x g Swing-Out (with H-Flex HS4 rotor) |
|---|---|
| Range | Maximum speed: 15,200 rpm (F21-48 x 2, Microliter 48 x 2 or Microliter 30 x 2 rotor) |
| Range | Maximum Run Time: 9h, 59min; also with continuous and pulse modes |
| Range | Noise Level: <54 dB(A) |
| Material | Cold rolled steel housing, ABS plastic top, front, sides, stainless steel bowl, rubber feet |
| Power | 120 V / 50 to 60 Hz |
| Compliant/Standard | EN/UL/IEC 61010-1, EN/UL/IEC 61010-2-020 and 61010-2-101, EN/UL/IEC 61326-1, EN/UL/IEC 61326-2-6, FCC part 15 |
| Other | Controller type: microprocessor |
| Other | Ventilated: no |
| Dimensions | H x W x D: 83.5 x 56.4 x 69.6 cm / 32.9 x 22.2 x 27.2 in. with lid closed, Height with lid open: 135 cm / 53.1 in. |
| Weight | 155 kg / 341.8 lbs |
| Manufacturer | Thermo Fisher Scientific |
| Model No | 75007352 |
| Warranty | 5 year limited |
