Description

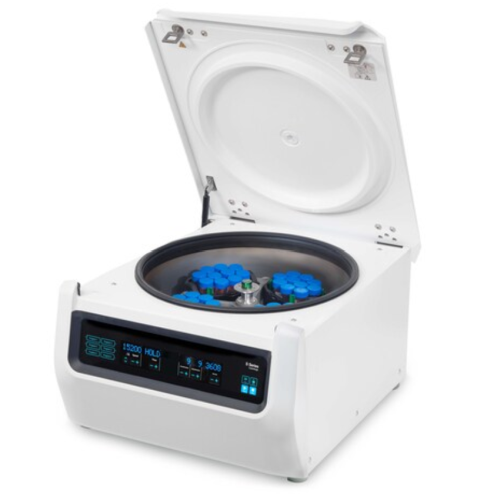

Thermo Scientific™ Centrifuge, S4T Ventilated, S Series, IVD-MD, Benchtop, 230 V / 50 to 60 Hz, 75007332
Features:
- SMARTSpin Imbalance Detection helps maximize acceleration, braking and residual load imbalance for each rotor and bucket to optimize safety and improve separations
- High rotor speeds and flexibility with 13 rotor options
- Rotors must be purchased separately
- Direct, brushless induction low profile
- Fiberlite rotors weigh up to 60% less than metal equivalent rotors and therefore accelerate/decelerate faster translating into reduced energy consumption per run
- Windshielded rotor options, including the Thermo Scientific H-Flex HS4 and BioShield 1000A Rotors, enable users to spin tubes, bottles, and plates at higher speeds with less energy than non-windshielded designs
- Manufactured in certified zero-waste facility using 100% renewable electricity in Osterode am Harz, Germany
- Easy-to-use keypad
- High-contrast LCD display with push button user interface with up to 6 programs
- Choices of 9 accel / 10 decel rates
- Intuitive controls simplify operation and provide detailed information on wide range of operating parameters and processing status for optimal performance
- Modern industrial design supports continuous improvement in rotor loading ergonomics, user safety, and current needed certifications
- Motorized lid latch enables one finger downward motion for easiest closing and locking of centrifuge lid, even on tall benches
- Compact dimensions help optimize
- Ergonomic height and curved design help ensure easy sample loading and unloading as well as easy cleaning
- Secure, ergonomic push-button rotor exchange in as little as three seconds with no tools required
- Full chamber access for cleaning convenience and helps minimize risk of contamination
- Flexibility to quickly switch between applications and evolve changing laboratory needs
- Biocontainment sealing options for glove-friendly, one-handed open/close capability are ergonomically designed for both right and left-handed operations
- Audible and visual closure cues enhance safety and security
- Biocontainment certification by National Institute for Health Protection, Porton Down, UK or TUV NORD CERT GmbH, Germany for selected rotors
- Also available in convenient application-based packages for either cell culture or blood processing
- Class ISO 6 according to DIN EN ISO 14644-1, ISO 14971, ISO 13485, ISO 9001, FDA listed, Device Class 1
- Capacity: 4 x 1000 mL BioBottles, 196 x 5/7 mL Blood Tubes, 148 x 9/10 mL Blood Tubes, 96 x 15 mL Conical Tubes, 40 x 50 mL Conical Tubes, 4 x 6 Microplates with TX-1000 Rotor
Specifications
| Range | Maximum RCF: 25,830 x g Fixed Angle (with microliter 30 x 2 mL rotor); 7,197 x g Swing-Out (with H-Flex HS4 rotor) |
|---|---|
| Range | Maximum speed: 15,200 rpm (F21-48 x 2, Microliter 48 x 2 or Microliter 30 x 2 rotor) |
| Range | Maximum Run Time: 9 h, 59 min; also with continuous and pulse modes |
| Range | Noise Level: <50 dB(A) |
| Material | Cold rolled steel housing, ABS plastic top, front, sides, stainless steel bowl, rubber feet |
| Power | 230 V / 50 to 60 Hz |
| Compliant/Standard | EN/UL/IEC 61010-1, EN/UL/IEC 61010-2-020 and 61010-2-101, EN/UL/IEC 61326-1, EN/UL/IEC 61326-2-6, FCC part 15 |
| Other | Controller type: microprocessor |
| Other | Ventilated: yes |
| Dimensions | H x W x D: 36.2 x 56.6 x 69 cm / 14.3 x 22.3 x 27.2 in. with lid closed, Height with lid open: 86 cm / 33.9 in. |
| Weight | 89.0 kg / 196.2 lb |
| Manufacturer | Thermo Fisher Scientific |
| Model No | 75007332 |
| Warranty | 5 year limited |
