Description

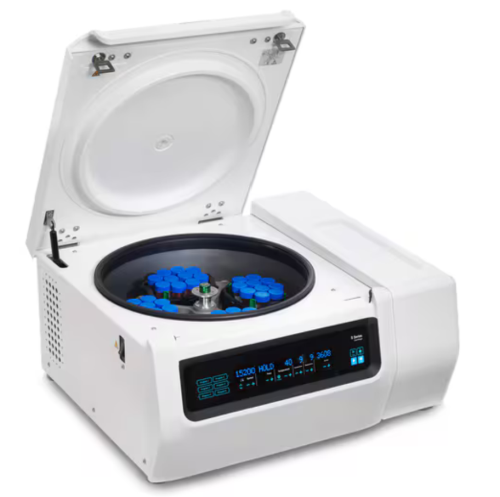

Thermo Scientific™ Centrifuge, S4TR Refrigerated, Bench Model, S Series, IVD-MD, 120 V / 50 to 60 Hz, 75007356
Features:
- SMARTSpin Imbalance Detection helps maximize acceleration, braking and residual load imbalance for each rotor and bucket to optimize safety and improve separations
- High rotor speeds and flexibility with 13 rotor options
- Rotors must be purchased separately
- Fiberlite rotors weigh up to 60% less than metal equivalent rotors and therefore accelerate/decelerate faster translating into reduced energy consumption per run
- Direct Drive System, Brushless Induction Low Profile
- GreenCool Technology, LCD power save, greener rotor options
- Choices of 9 acceleration / 10 deceleration rates
- Up to 6 Programs via LCD User Interface buttons
- Windshielded rotor options, including H-Flex HS4 and BioShield 1000A Rotors, enable users to spin tubes, bottles, and plates at higher speeds with less energy than non-windshielded designs
- Manufactured in certified zero-waste facility using 100% renewable electricity in Osterode am Harz, Germany
- Intuitive controls simplify operation and provide detailed information on wide range of operating parameters and processing status for optimal performance
- Modern industrial design supports continuous improvement in rotor loading ergonomics, user safety, and current needed certifications
- Motorized lid latch enables one finger downward motion for easiest closing and locking of centrifuge lid, even on tall benches
- Compact dimensions help optimize work area
- Ergonomic height and curved design help ensure easy sample loading and unloading as well as easy cleaning
- Secure, ergonomic push-button rotor exchange in as little as three seconds with no tools required
- Full chamber access for cleaning convenience and helps minimize risk of contamination
- Flexibility to quickly switch between applications and evolve changing laboratory needs
- Biocontainment sealing options for glove-friendly, one-handed open/close capability are ergonomically designed for both right and left-handed operations
- Audible and visual closure cues enhance safety and security
- Biocontainment certification by National Institute for Health Protection, Porton Down, UK or TUV NORD CERT GmbH, Germany for selected rotors
- Class ISO 8 according to DIN EN ISO 14644-1
- Standards: ISO 14971, ISO 13485, ISO 9001, FDA listed, Device Class 1
- General laboratory use, IVD certified, FDA listed options available
- Capacity: 4 x 1000 mL BioBottles, 196 x 5/7 mL Blood Tubes, 148 x 9/10 mL Blood Tubes, 96 x 15 mL Conical Tubes, 40 x 50 mL Conical Tubes, 4 x 6 Microplates with TX-1000 Rotor
- Plug Type: North America Only: Rated for use with 120V - 240V, 60 Hz power sources, centrifuge includes both NEMA 5-15P (120V) and NEMA 6-15P (208V) plug heads
Specifications
| Range | Maximum RCF: 25,830 x g Fixed Angle (with microliter 30 x 2 mL rotor); 7,197 x g Swing-Out (with H-Flex HS4 rotor) |
|---|---|
| Range | Maximum speed: 15,200 rpm (F21-48 x 2, Microliter 48 x 2 or Microliter 30 x 2 rotor) |
| Range | Maximum Run Time: 9h, 59min; also with continuous and pulse modes |
| Range | Noise Level: <51 dB(A) |
| Material | Cold rolled steel housing, ABS plastic top, front, sides, stainless steel bowl, rubber feet |
| Power | 120 V / 50 to 60 Hz |
| Compliant/Standard | EN/UL/IEC 61010-1, EN/UL/IEC 61010-2-020 and 61010-2-101, EN/UL/IEC 61326-1, EN/UL/IEC 61326-2-6, FCC part 15 |
| Other | Controller type: microprocessor |
| Other | Ventilated: no |
| Dimensions | H x W x D: 36.1 x 74.6 x 69.5 cm/ 14.2 x 29.4 x 27.2 in. with lid closed, 86 cm / 33.9 in. height with lid open |
| Weight | 125 kg / 275.6 lb |
| Manufacturer | Thermo Fisher Scientific |
| Model No | 75007356 |
| Warranty | 5 year limited |
