Description

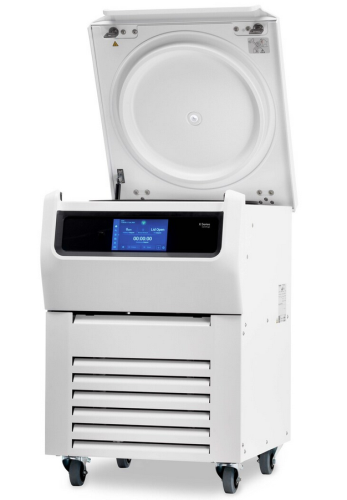

Thermo Scientific™ Centrifuge, X4FR Refrigerated, Floor Model, X Series, IVD-MD, 120 V / 50 to 60 Hz, 75007360
Features:
- Intuitive touchscreen user interface simplifies operation with easily accessible menu bar and centrifuge health icon for at-a-glance monitoring
- Accumulated Centrifugal Effect (ACE) integrator function for increased reproducibility
- SMARTSpin Imbalance Detection helps optimize safety and maximizes acceleration, braking and residual load imbalance for each rotor and bucket option
- Choices of 9 acceleration / 10 deceleration rates
- Up to 100 Programs, including multi-step programming via Touch Screen; Including customizable Pulse options
- Stable cooling at lower temperatures than previous models, helping to ensure integrity of temperature-sensitive samples with cooler -20 degrees C temperature setpoint
- GreenCool Technology features next-generation natural refrigerant (R290) cooling system, which reduces environmental impact with Global Warming Potential (GWP) of 3, while not contributing to depletion of ozone layer and is compliant with EU and US EPA F-gas regulations
- Green Mode compressor on/off feature with shut-down programming can extend compressor life and reduce energy costs
- Scheduling features promotes energy savings and enables pre-programmed start-up of centrifuge as soon as you arrive in lab
- Fiberlite Rotors weigh up to 60% less than metal equivalent rotors and therefore accelerate/decelerate faster translating into reduced energy consumption per run
- Windshielded rotor options, including H-Flex HS4, BioShield 1000A and HIGHPlate 6000 Rotors, enable users to spin tubes, bottles, and plates at higher speeds with less energy than non-windshielded designs
- Manufactured in certified zero-waste facility using 100% renewable electricity in Osterode am Harz, Germany
- Secure, ergonomic push-button rotor exchange in as little as three seconds with no tools required
- Full chamber access for cleaning convenience and helps minimize risk of contamination
- Flexibility to quickly switch between applications and evolve changing laboratory needs
- Biocontainment sealing options for glove-friendly, one-handed open/close capability are ergonomically designed for both right and left-handed operations
- Audible and visual closure cues enhance safety and security
- Biocontainment certification by National Institute for Health Protection, Porton Down, UK or TÜV NORD CERT GmbH, Germany for selected rotors
- Up to 18 rotor options, including Fiberlite carbon fiber rotor options, to help maximize performance and flexibility
- Rotors must be purchased separately
- Fiberlite carbon fiber rotors are supported by 15-year warranty and no limitation in cycles of use
- Carbon fiber offers ability to mold each cavity to fit disposable conical tubes, bottles, and other consumables
- TX-1000 High-Capacity Rotor has excellent application versatility with variety of sample containers (bottles, conical bottles, conical tubes, round bottom tubes, blood tubes, microtubes, microplates, blood bags, and cell culture bags)
- Expand options with use of the BIOLink adapter (75007304), which opens up 17 additional adapter configurations
- Floor model includes lockable casters for easy storage and to facilitate cleaning in clean room environments
- Space saving design with compact dimensions to optimize work area at an ergonomic height
- Lid safety features promote ergonomic sample loading and unloading and enable easy cleaning
- Event log, rotor log and chart data can be exported via easily accessible USB in CSV or PDF formats
- Programs and exported data are downloadable and shareable between units
- Optional SECURE-Spin Mode available, enables advanced and secure control features in the X Series centrifuges by supporting 21 CFR Part 11 data management compliance and traceability
- Traceable documentation supports audit trail for setting and program changes
- Compatible with Thermo Scientific Centri-Log Plus Data Management Software enabling remote monitoring of unlimited number of centrifuges and sample tracking with a barcode reader
- Class ISO 8 cleanroom compatible for floor-standing models
- Compatible with Vaporized Hydrogen Peroxide decontamination
- General laboratory use, IVD certified, FDA listed options available
- GreenCool Technology is compliant with EU and US EPA F-gas regulations
- Capacity: >4 x 1000 mL BioBottles, 196 x 5/7 mL Blood Tubes, 148 x 9/10 mL Blood Tubes, 96 x 15 mL Conical Tubes, 40 x 50 mL Conical Tubes, 4 x 6 Microplates with TX-1000 Rotor
- Standards:ISO 14971, ISO 13485, ISO 9001, FDA listed, Device Class 1
Specifications
| Range | Maximum RCF: 25,830 x g Fixed Angle (with microliter 30 x 2 mL rotor); 7,197 x g Swing-Out (with H-Flex HS4 rotor) |
|---|---|
| Range | Maximum speed: 15,200 rpm (F21-48 x 2, Microliter 48 x 2 or Microliter 30 x 2 rotor) |
| Range | Maximum Run Time: 99 h, 59 min, 59 sec; also with continuous and pulse modes |
| Range | Noise Level: <54 dB(A) |
| Material | Cold rolled steel housing, ABS plastic top, front, sides, stainless steel bowl, rubber feet |
| Power | 120 V / 50 to 60 Hz |
| Compliant/Standard | EN/UL/IEC 61010-1, EN/UL/IEC 61010-2-020 and 61010-2-101, EN/UL/IEC 61326-1, EN/UL/IEC 61326-2-6, FCC part 15 |
| Other | Controller type: microprocessor |
| Other | Ventilated: no |
| Dimensions | H x W x D: 83.5 x 56.4 x 69.6 cm / 32.9 x 22.2 x 27.2 in. with lid closed, 135 cm / 53.1 in. height with lid open |
| Weight | 159 kg / 350.5 lb. |
| Manufacturer | Thermo Fisher Scientific |
| Model No | 75007360 |
| Warranty | 5 year limited |
