Description

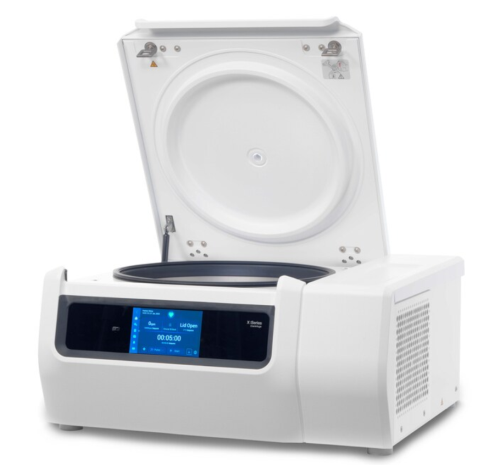

Thermo Scientific™ Centrifuge, X4TR TX1000, Refrigerated Bench Model, X Series, Cell Culture Package, IVD-MD, 120 V, 75015840
Features:
- Intuitive touchscreen user interface simplifies operation with easily accessible menu bar and centrifuge health icon for at-a-glance monitoring
- Accumulated Centrifugal Effect (ACE) integrator function for increased reproducibility
- SMARTSpin Imbalance Detection helps optimize safety and maximizes acceleration, braking and residual load imbalance for each rotor and bucket option
- Choices of 9 acceleration / 10 deceleration rates
- Up to 100 Programs, including multi-step programming via Touch Screen; Including customizable Pulse options
- Stable cooling at lower temperatures than previous models, helping to ensure the integrity of temperature-sensitive samples with a cooler -20 degrees C temperature setpoint
- GreenCool Technology features a next-generation natural refrigerant (R290) cooling system, which reduces environmental impact with a Global Warming Potential (GWP) of 3, while not contributing to depletion of the ozone layer and is compliant with EU and US EPA F-gas regulations
- Green Mode compressor on/off feature with shut-down programming can extend compressor life and reduce energy costs
- Scheduling features promote energy savings and enable pre-programmed start-up of the centrifuge as soon as you arrive in the lab
- Fiberlite Rotors weigh up to 60% less than metal equivalent rotors and therefore accelerate/decelerate faster translating into reduced energy consumption per run
- Windshielded rotor options, including H-Flex HS4, BioShield 1000A and HIGHPlate 6000 Rotors, enable users to spin tubes, bottles, and plates at higher speeds with less energy than non-windshielded designs
- Manufactured in a certified zero-waste facility using 100% renewable electricity in Osterode am Harz, Germany
- Secure, ergonomic push-button rotor exchange in as little as three seconds with no tools required
- Full chamber access for cleaning convenience and helps minimize risk of contamination
- Flexibility to quickly switch between applications and evolve changing laboratory needs
- Biocontainment sealing options for glove-friendly, one-handed open/close capability are ergonomically designed for both right and left-handed operations
- Audible and visual closure cues enhance safety and security
- Biocontainment certification by National Institute for Health Protection, Porton Down, UK or TUV NORD CERT GmbH, Germany for selected rotors
- Up to 18 rotor options, including Fiberlite carbon fiber rotor options, to help maximize performance and flexibility
- Additional rotors must be purchased separately
- Fiberlite carbon fiber rotors are supported by 15-year warranty and no limitation in cycles of use
- Carbon fiber offers ability to mold each cavity to fit disposable conical tubes, bottles, and other consumables
- TX-1000 High-Capacity Rotor has excellent application versatility with a variety of sample containers (bottles, conical bottles, conical tubes, round bottom tubes, blood tubes, microtubes, microplates, blood bags, and cell culture bags)
- Expand options with use of BIOLink adapter (75007304), which opens up 17 additional adapter configurations
- Space saving design with compact dimensions to optimize work area at an ergonomic height
- Lid safety features promote ergonomic sample loading and unloading and enable easy cleaning
- Event log, rotor log and chart data can be exported via easily accessible USB in CSV or PDF formats
- Programs and exported data are downloadable and shareable between units
- Optional SECURE-Spin Mode available, enables advanced and secure control features in the X Series centrifuges by ccording to DIN EN ISO 14644-1supporting 21 CFR Part 11 data management compliance and traceability
- Traceable documentation supports audit trail for setting and program changes
- Compatible with Centri-Log Plus Data Management Software enabling remote monitoring of unlimited number of centrifuges and sample tracking with a barcode reader
- Class ISO 6 cleanroom compatible for benchtop models
- Compatible with Vaporized Hydrogen Peroxide decontamination
- General laboratory use, IVD certified, FDA listed options available
- GreenCool Technology is compliant with EU and US EPA F-gas regulations
- Standards: ISO 14971, ISO 13485, ISO 9001, FDA listed, Device Class 1
- Plug type: North America Only: Rated for use with 120V - 240V, 60 Hz power sources, centrifuge includes both the NEMA 5-15P (120V) and NEMA 6-15P (208V) plug heads
- Capacity: 4 x 1000 mL BioBottles, 196 x 5/7 mL Blood Tubes, 148 x 9/10 mL Blood Tubes, 96 x 15 mL Conical Tubes, 40 x 50 mL Conical Tubes, 4 x 6 Microplates with TX-1000 Rotor
Included:
- X4TR Refrigerated Centrifuge unit
- TX-1000 Rotor Configured with 4 Buckets for Blood Processing
- Set of four ClickSeal Biocontainment Lids
- Set of four Adapters for 15 mL conical tubes
- Set of four Adapters for 50 mL conical tubes
Specifications
| Range | Maximum RCF: 4122 x g with TX-1000 Rotor |
|---|---|
| Range | Maximum speed: 4,200 rpm with TX-1000 Rotor |
| Range | Maximum Run Time: 99 h, 59 min, 59 sec; also with continuous and pulse modes |
| Range | Noise Level: <51 dB(A) |
| Material | Cold rolled steel housing, ABS plastic top, front, sides, stainless steel bowl, rubber feet |
| Power | 120 V / 50 to 60 Hz |
| Compliant/Standard | EN/UL/IEC 61010-1, EN/UL/IEC 61010-2-020 and 61010-2-101, EN/UL/IEC 61326-1, EN/UL/IEC 61326-2-6, FCC part 15 |
| Other | Controller type: microprocessor |
| Other | Ventilated: No |
| Dimensions | H x W x D: 36.2 x 56.6 x 69 cm / 14.3 x 22.3 x 27.2 in. with lid closed, 86 cm / 33.9 in. height with lid open |
| Weight | 125 kg / 275.6 lb |
| Manufacturer | Thermo Fisher Scientific |
| Model No | 75015840 |
| Warranty | 5 year limited |
