Description

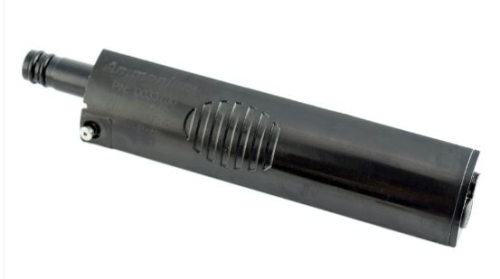

In-Situ™ Aqua TROLL® Chloride ISE (Ion Selective Electrode) Sensor, 0033720
Applications:
- Agriculture and irrigation to monitor drainage and runoff
- Source water, drinking water, and wastewater for influent and effluent monitoring
- Stormwater for sediment runoff and nutrient contamination
- Mining for mine water management and nutrient contamination monitoring
- Groundwater for nutrient contamination and long-term testin
- Aquaculture for pond, recirculation, farming, and wastewater monitoring
Specifications:
| Type of Sensor | Ion Selective Electrode (Solid State) |
| Methodology | Standard Methods 4500-Cl¯ |
| Range | 0 to 150,000 mg/L as Cl¯ D |
| Accuracy* | ± 10 % or ± 2 mg/L, whichever is greater |
| Resolution | 0.01 mg/L |
| Average Response Time | T63<1s, T90<10s, T95<30s |
| Units of Measure | mg/L, ppm, mV |
| Reference Junction Type | Refillable (existing pH sensor reference) |
| Shelf Life | 6 months |
| Field Life | 1 year or greater |
| Recommended Calibration Frequency | Monthly |
| Pressure Rating | 350 psi |
| Usable Depth | 200 m (650 ft) |
| Operational Temperature Range | 0 to 40 °C |
*Accuracy determined between 2 calibration points immediately following proper conditioning and calibration—varies on site conditions and environmental interferences.
Aqua TROLL® Sensors:
| Cat. No. | Mfg P/N | Description |
| 92-1629-09 | 0063490 | AT Temperature Sensor |
| 92-1629-10 | 0063470 | AT pH/ORP Sensor |
| 92-1629-16 | 0063460 | AT Temperature/Conductivity Sensor |
| 92-1629-17 | 0063450 | AT RDO Sensor w/RDO-X cap |
| 92-1629-21 | 0033700 | AT Ammonium ISE Sensor |
| 92-1629-22 | 0033710 | AT Nitrate ISE Sensor |
| 92-1629-23 | 0033720 | AT Chloride ISE Sensor |
| 92-1629-24 | 0038900 | AT Chlorophyll a Sensor |
| 92-1629-25 | 0038920 | AT Phycocyanin (BGA-PC) Fluorometer Sensor |
| 92-1629-26 | 0038930 | AT Phycoerythrin (BGA-PE) Fluorometer Sensor |
| 92-1629-27 | 0038890 | AT Rhodamine WT Fluorometer Sensor |
| 92-1629-37 | 0063480 | AT Turbidity Sensor |
Other Aqua TROLL® Accessories:
| Cat. No. | Mfg P/N | Description |
| 92-1629-12 | 0063510 | AT Sensor Port Plug |
| 92-1629-13 | 0063500 | AT Wiper |
| 92-1629-14 | 0064630 | AT Wiper Port Plug |
| 92-1629-15 | 0076100 | AT Copper Antifouling Restrictor Guard |
| 92-1629-31 | 0053310 | RuggedCable® Connector W/Male Connector End to Stripped & Tinned End |
| 92-1629-32 | 0052500 | TROLL Com® Bundle w/USB Connector & Software CD |
| 92-1629-35 | 0020680 | Conductivity Calibration Sol'n 1413 µS, 1 L |
| 92-1629-42 | 0051810 | Lg Desiccant w/Titanium Connector f/Vented RuggedCable Systems |
| 92-1629-43 | 0031240 | Wireless TROLL Com® for Aqua TROLL® & Level TROLL® |
| 92-1629-51 | 0061150 | Rugged Android™ 7" Tablet |
| 92-1629-53 | 0029140 | Desiccant Refill Kit |
| 92-1629-71 | 0052000 | RuggedCable® Systems for Aqua TROLL® & Other In-Situ™ Instruments |
Specifications
| Application | Environmnetal monitoring |
|---|---|
| Manufacturer | In-Situ Inc |
| Model No | 0033720 |
