Description

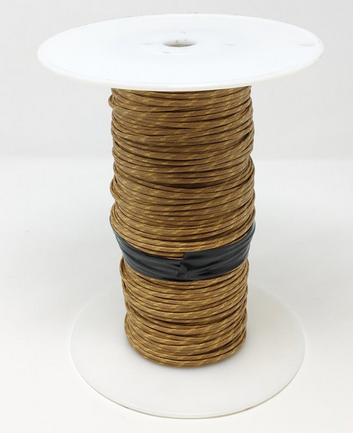

Pyromation® Chromel®/Alumel® Type K20 Thermocouple Wire, K201304
Features:
- Duplex - ASTM/ANSI Type K
- ASTM/ANSI Color Code: Negative wire, red; Positive wire, yellow; Overall brown, with Tracer where possible
Specifications:
| American Wire Guage (AWG) | 20 |
| Conductor | Solid |
| Conductor Insulation, Each | Glass Braid |
| Outer Jacket Insulation | Glass Braid |
| Limits of Error | Standard |
| Nominal Size | 0.059 x 0.097 |
| Weight/100 ft | 8 lbs |
| Conductor Diameter | 0.0320 |
| Ohms/Double Foot | 0.590 ohms |
Specifications
| Manufacturer | Pyromation |
|---|---|
| Model No | K201304 |
