Description
- Low temperature alert appears when the block is warming up. It alerts the user that the temperature is below the set value.
- High temperature alert appears when the block is warming up. It alerts the user that the temperature is above the set value.
- Countdown timer shows time remaining until the heating element shuts off.

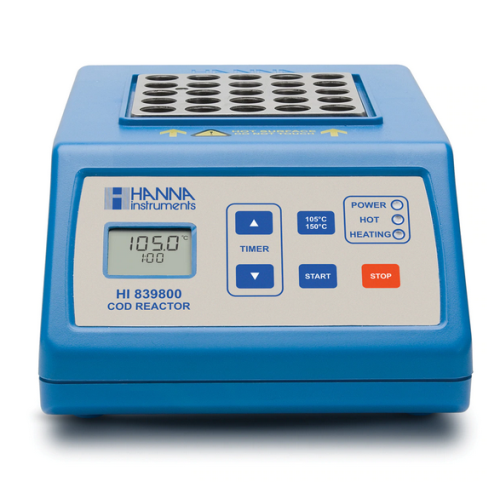

The HI 839800 COD reactor is constructed of durable materials. The aluminum block incorporates a 25-vial capacity and a well for a reference temperature probe.
The HI 839800 COD reactor is an easy-to-use test tube heater. Its well-marked user interface provides intuitive operation. The reactor is equipped with two predefined temperature settings: 150°C and 105°C. COD and total phosphorus digestions are conducted at 150°C, and total nitrogen digestions are at 105°C.
In addition, the HI 839800 has 3 LED's for visual indication. A green LED indicates power, a blinking red LED warns the user of a hot heater block (above 50°C), and a yellow LED indicates heating.
A three-hour countdown timer is also incorporated to control timed digestions. When the countdown timer expires, a beep will sound and the heating element will turn off.
The reactor contains a thermal fuse that prevents overheating by turning off the heating element.
Block temperature is continuously displayed on the LCD even when there is no active temperature program running.
Specifications:
Temperature of Reaction
105°C or 150°C (221°F or 302°F)
Temperature Stability
±0.5°C (±0.9°F)
Temperature Range
-10°C to 160°C (14°F to 320°F)
Accuracy
±2°C (±3.6°F)
Capacity
25 vials (dia 16 x 100 mm), one receptacle for a stainless steel reference thermometer
Warm-up Time
10-15 minutes, depending on selected temperature
Operating Mode
timed (0 to 180 minutes) or infinity mode
Block
aluminum
Environment
5 to 50°C (41 to 122°F)
Power Supply
(fuse protected)HI 839800-01: 115 VAC; 60 Hz; 250 W
HI 839800-02: 230 VAC; 50 Hz; 250 W
Dimensions
190 x 300 x 95 mm (7.5 x 11.8 x 3.7")
Weight
approximately 4.8 kg (10.6 lb.)
Supplied with:
