Description

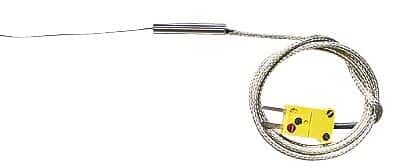

Thermocouple Probe
Features:
Bend probes around pipe diameters as small as twice the sheath diameter to easily determine your pipe temperature
Response Time: .85 seconds or greater
Type "K" and "J" probes feature ICONEL 600 sheaths
Type "T" probes feature 316 Stainless Steel sheaths
Fiberglass insulated cable with stainless steel overbraid
Each probe comes with a color coded ANSI mini connector: type J-black, type K-yellow, type T-blue, and type E-purple.
Note: the temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).
Specifications:
Length: 25"
Min Temperature: -418° F
Max Temperature: 2012° F
Min Temperature: -250° C
Max Temperature: 1100° C
Junction: Grounded
Connector Type: Mini Connector
Sheath Length: 25"
