Description

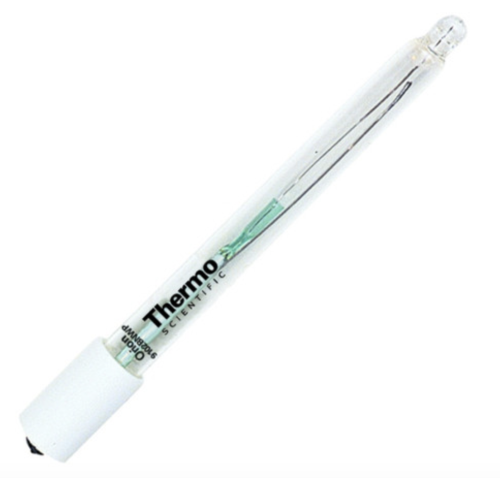

Thermo Scientific™ Orion™ Combination pH Electrode, with Glass Body, 9102BNWP
Features:
- Conduct accurate quality control and research work with thi general purpose electrode
- Contains a silver/silver chloride reference, widely used due to accuracy and broad temperature range
Includes:
- 60 mL bottle of Orion filling solution, 91-2668-03 (Orion™ 900011)
Specifications:
| Description | With waterproof BNC connector |
| Connector Types | WPBNC |
| Junction | Ceramic |
| Material | Glass Body |
| Type | Combination Ag/AgCl pH Electrode, glass body, BNC waterprood connector |
| For Use With (Equipment) | Standard pH Meter, BNC connector |
| Internal Reference | Ag/AgCl |
| Slope | 92 to 102% |
| Storage Requirements |
Short Term Storage (up to one week): Soak electrode in pH electrode storage solution 21-2109-01 (Orion™ 910001) Long Term Storage (more than one week): Fill reference chamber and securely cover fill hole; cover sensing bulb and reference junction with protective cap, sleeve or storage bottle containing few drops of storage solution (before returning electrode to use, prepare it as new electrode) |
| Length Cable | 1 m (39 in) |
Specifications
| Range | pH: 0 to 14 |
|---|---|
| Range | Temperature: 0 Degrees C to 90 Degrees C (32 Degrees F to 194 Degrees F) |
| Operating Environment | 0 Degrees C to 90 Degrees C (32 Degrees F to 194 Degrees F) |
| Dimensions | 120 mm (4.7 in) length x 12 mm (0.47 in) body diameter, Cap diameter: 16 mm (0.63 in) |
| Manufacturer | Thermo Scientific Orion |
| Model No | 9102BNWP |
