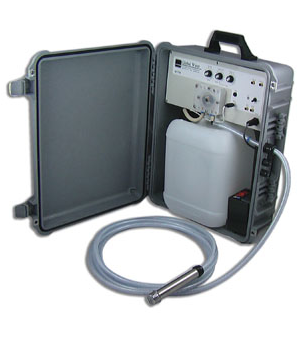

Composite Water Sampler Model WS700-IBO with Ice Bags, Global Water Instrumentation, Inc., CL0500 [REPRESENTATIVE IMAGE]
Roll over image to zoom in Click on image to zoom
Composite Water Sampler Model WS700-IBO with Ice Bags, Global Water Instrumentation, Inc., CL0500 [REPRESENTATIVE IMAGE]

Composite Water Sampler Model WS700-IBO with Ice Bags, Global Water Instrumentation, Inc., CL0500 [REPRESENTATIVE IMAGE]

Item: 92-2649-09-EA
Request a Quote

Description

Global Water® Composite Water Sampler Model WS700-IBO with Ice Bags, CL0500Features:
  • Single bottle system is ideal for wastewater, industrial and environmental sampling — easy and reliable sampling method
  • State-of-the-art design gives full control over sampling — does composite or discrete sampling
  • Pump and bottle is controlled to collect type, size, and timing of sample desired
  • Simple to operate no programming required — great for field sampling
  • Output provided for use with optional datalogger
  • Lightweight and easy to carry — even with full bottle, can be suspended in manhole for storm or sewer water sampling
  • Small footprint is easy to hide or camouflage and can be chained and locked to prevent vandalism
  • Rugged construction for harsh environments
  • Meets federal, state and local wastewater regulations
  • Timed and external event triggered flow proportional sampling
  • Delay timer allows starting multiple samplers in the field at the same time or to delay drawing after a triggering event for a better representation
  • Adjustable and repeatable sample volume
  • Peristaltic pump prevents sample contamination — automatic 15-second backflush clears pickup strainer and hose and empties hose so next sample is not contaminated
  • Rechargeable battery or AC powered — low power consumption; battery will power unit for several months on standby or up to 1 hr continuous sampling with pump running
  • Float switche located in bottle protects unit against overflow by turning off perstaltic pump when bottle is full
  • Adjustable peristaltic pump collects 1 to 15 composite sample sizes from 50 mL to 2 L plus full bottle discrete setting or to a single sample time interval from 5 min. to 12 hrs. plus and external trigger mode for flow proportional samples
  • CE Certified
  • Optional external pulse-type flow meter can control water sample interval for true flow proportional sampling — Global Water® Open Channel Flow Monitor can provide flow proportional output signal for triggering the WS700 samplers; check for other options for third party flow meter with 4-20 mA output
Applications:
  • Water/wastewater treatment
  • Stormwater
  • Industrial discharge
  • Waste collection systems
  • Rivers/streams
Includes Complete Sampling System:
  • 1-gallon polyethylene sample bottle for collecting composite samples
  • One peristaltic sampling pump
  • Circuit board control panel enclosed logic timer/controller
  • 12 V 5 AH rechargeable gel cell battery
  • Battery charger
  • One 15 ft. reinforced PVC sample pickup hose with removable debris strainers
  • Rugged, rainproof, lockable carrying enclosure
  • Ice bags included to keep sample cold
Specifications:
Operating Temperature 32 ° to 158 °F (0 ° to 70 °C)
Materials Enclosure Expanded UV protected PVC
Bottle 1-gallon Polyethylene
Pickup Hose 15 ft. reinforced PVC, 1/4 in. I.D. polyethyleneflexible section with intake strainer
Pump Tubing Neoprene, 1/4 in. I.D., 7/16 in. O.D.
Sample Pump Flow Rate 1000 mL per minute at a 4 foot head
Type Peristaltic
Maximum Lift ~ 20 ft.
Battery Type Rechargeable 5 AH Gel Cell
Life Pump running continuously under load:  ~ 1 hourStandby:  3 months while still retaining enough power                 to run pump to capacity
Start Delay 16 time settings from 0 to 12 hours
Composite Interval 15 time settings from 5 min. to 12 hrs. plus an ExternalTrigger mode setting
Sample Size 15 composite sample sizes from 50 mL to 2 L plus a FullBottle discrete setting (approximate sies at 4 ft. head)
External Trigger Input 250 mS minimum pulse widthSwitch closure or 4-24 VDC
Pulse Output 5 VDC one-second pulse1000 ohm output impedance
Bottle Switch Input Switch closure inputFloat read switch in bottle
Rain and Water Sensors Optional moisture sensors or switch closure inputs
Internal Fuse 10 A Slow-Blow
Dimensions of Sampler, H x W x D 22 x 17 x 9 in. (56 x 43 x 23 cm)
Weight 20 lb. (9 kg)
Shipping Weight 22 lb. (10 kg)


Specifications

Manufacturer Global Water
Model No CL0500
