Description

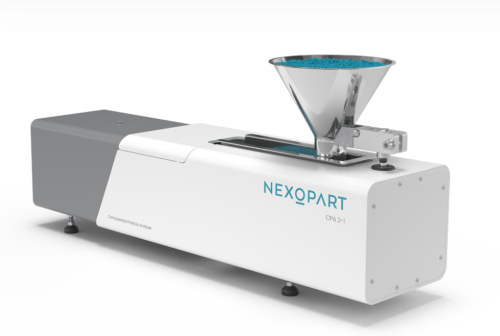

Nexopart® Computerized Particle Analyzer, Laboratory Model, 110 V, 50 to 60 Hz, CPA 2-1
Features:
- Dynamic particle analyzer for precision size and shape characterization of of dry, free-flowing particles as fine as 10 microns
- Utilizes high-resolution CMOS camera technology for accurate particle detection and evaluation
- Digital, noise- and dust-free
- Advanced CpaServ software with intuitive interface and comprehensive data analysis tools
- Real-time analysis capability measures up to 100% of particles in sample for statistically reliable results
- Excellent repeatability because of automatic measurement process using one-button operation and stored SOPs
- Small footprint allows for easy mobility of unit
- Material samples are automatically dosed via feed chute
- After arriving in measurement channel, LED lighting array and digital line scan camera operate using backlight method
- Built-in line scan camera scans free-flowing bulk materials individually with nothing to falsify results as particles are neither cropped nor lost during 'scan' principle of operation
- High-resolution measurement values are calculated for all particles and an ID is assigned and stored for each individual particle in CpaServ software
Applications:
- Fertilizer
- Plastics
- Sand
- Ceramic
- Animal feed
- Glass
- Abrasive materials
Specifications
| Range | Measuring: 20 microns to 30 mm particle size |
|---|---|
| Range | Horizontal resolution: 2927 pixels |
| Range | Pixel frequency: 100 MHz |
| Power | 110 V / 50 to 60 Hz (230 V / 50 to 60 Hz available) |
| Compliant/Standard | ISO 13322-2 standard for dynamic image analysis |
| Connectivity | BUS-Extension, GigE Vision for CMOS camera and USB |
| Other | Feeder width: 55 mm |
| Other | Light Source: LED |
| Dimensions | Length x width x height: 810 x 200 x 400 mm |
| Weight | 21 kg |
| Manufacturer | Nexopart |
| Model No | CPA 2-1 |
