Condenser, Graham, PYREX, 200 mm Borosilicate Glass, with 19/38 Standard Taper Outer Joint, 1/CS, Corning, 2540-200
Roll over image to zoom in Click on image to zoom
Condenser, Graham, PYREX, 200 mm Borosilicate Glass, with 19/38 Standard Taper Outer Joint, 1/CS, Corning, 2540-200

Condenser, Graham, PYREX, 200 mm Borosilicate Glass, with 19/38 Standard Taper Outer Joint, 1/CS, Corning, 2540-200

Item: C-2540-77-CS
UOM: CS (1)
Price:
$250.52

Description

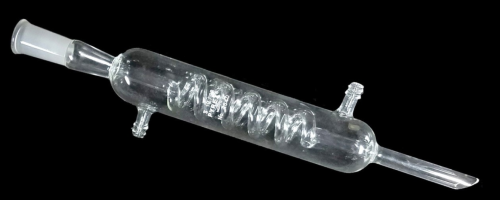

Corning® Condenser, Graham, PYREX, 200 mm Borosilicate Glass, with 19/38 Standard Taper Outer Joint, 2540-200

Features:

  • Condenser has spiral coil inner tube surrounded by 200 mm outer water cooled jacket
  • Coil greatly increases surface area, improving condensation efficiency during reflux or distillation processes
  • 10 mm OD water connections
  • Plain drip tip at bottom
  • Used primarily in distillation assemblies to condense vapors back into liquid
  • Representative image — actual product may differ somewhat

Specifications

Material Borosilicate glass
Other 19/38 outer standard taper joint
Dimensions 350 mm Overall length x 200 mm jacket x 41 mm jacket outside diameter
