Condenser, Pyrex, Liebig, 24/40 Inner & Outer Joints, 41 mm Jacket OD x 400 mm Length, Corning 2400-400
Roll over image to zoom in Click on image to zoom
Condenser, Pyrex, Liebig, 24/40 Inner & Outer Joints, 41 mm Jacket OD x 400 mm Length, Corning 2400-400

Condenser, Pyrex, Liebig, 24/40 Inner & Outer Joints, 41 mm Jacket OD x 400 mm Length, Corning 2400-400

Item: 11-5920-80-EA
UOM: EA (1)
Price:
$196.93

Description

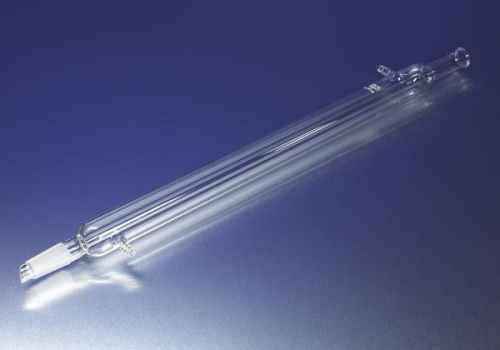

Corning™ PYREX® 400 mm Liebig Condenser, Drip Tip, with 24/40 Standard Taper Outer and Inner Joints, 2400-400

Features:

  • General purpose condenser suitable for vacuum distillations
  • Tubulations are approximately 10 mm outside diameter
  • Standard Taper outer joint at top and inner joint at bottom with drip tip



Additional Sizes:

Catalog No. Mfr P/N Description
11-5920-77 2400-200 200 mm PYREX® Liebig Condenser w/ST Joints and Drip Tip
11-5920-79 2400-300 300 mm PYREX® Liebig Condenser w/ST Joints and Drip Tip
11-5920-80 2400-400 400 mm PYREX® Liebig Condenser w/ST Joints and Drip Tip

Specifications

Material Borosilicate glass
Other 24/40 Inner and Outer Standard Taper Joints
Other Tubulation, outside diameter: 10 mm
Dimensions 550 mm overall height, Jacket outside diameter x length: 41 x 400 mm
Manufacturer Corning
Model No 2400-400
