Description

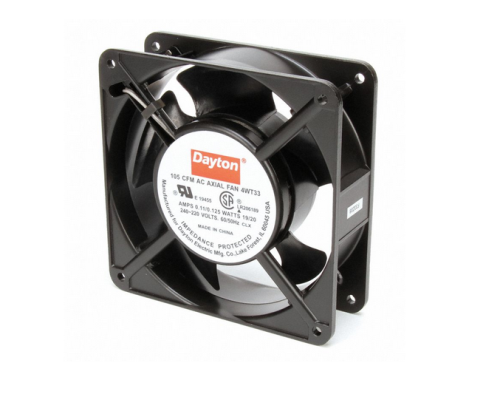

Dayton® Cooling Fan for Ash Fusion Furnace, 230 V, 4WT33
Features:
-
Standard Square Axial Fan
Specifications:
| Fan Shape | Square |
| Mounting Eye O.C. | 4-1/8 in. |
| CFM @ 0.000-In. SP | 105/85 |
| Electrical Connection | Fans Terminals |
| Sound Level | 48/43 |
| IP Rating | IP20 |
| Mounting Position | Horizontal |
| Bearing Type | Sleeve |
| RPM | 2900/2550 |
| Motor Design | Shaded Pole |
| Motor Insulation | Class A |
| Thermal Protection | Impedance |
| Maximum Ambient Temperature | 158 Degrees F |
| Blade Material | Polybutylene Terephthalate |
| Housing Material | Cast Aluminum |
| Color | Black |
| Cord Set | Not Include (Purchase Separately) |
Specifications
| Power | 230 VAC, Watts 19/20, Hz 50/60, Amps 0.11/0.12 |
|---|---|
| Application | Equipment Cooling |
| Compliant/Standard | RU E19455 AND CSA LR206189 |
| Dimensions | 4 11/16 in Height, 4 11/16 in Width, 1 1/2 in Depth |
| Manufacturer | Dayton |
| Model No | 4WT33 |
